Precision Depaneling PCB Router Equipment,KAVO Spindle Pcb Depaneling Router With Computar EX2C LENS 220V,CW-F04

Product description: Precision Depaneling PCB Router Equipment,KAVO Spindle Pcb Depaneling Router With Computar EX2C LENS 220V,CW-F04
INQUIRY

High Speed Stand Alone CNC PCB Router Machine With 0.01mm Positioning Repeatability,CW-F04

Detail Description:

Warranty:	1 Year	Colour:	White
Spindle:	KAVO	Power:	220V
PCB Thickness:	0.5-3.5mm	Name:	PCB Separator Router

Specification:

Model	CW-F04
Standard working area	320*320mm(Standard)
Power	220V, 4.2KW
Manipulator Repeatability	±0.02mm
Resolution	±0.01mm
Board Positioning	Dual workstation with nest fixture or pin fixture
Panel Location	Located by tooling holes or edges of PCB
Loading	Manual
Unloading	Manual
Panel Size	320*320mm(standard)
Panel Thickness	0.5-3.5mm
Spindle motor	0.5kW Morning Star Spindle
Dust filtration system	3KW Vacuum Cleaner
Vision system	High resolution CCD video camera
Programming	Vision assisted point to point manual teaching
Editing Function	Dry run vision assisted / test run mode
Machine weight	650kgs
Machine dimension	135012501450cm

Features:

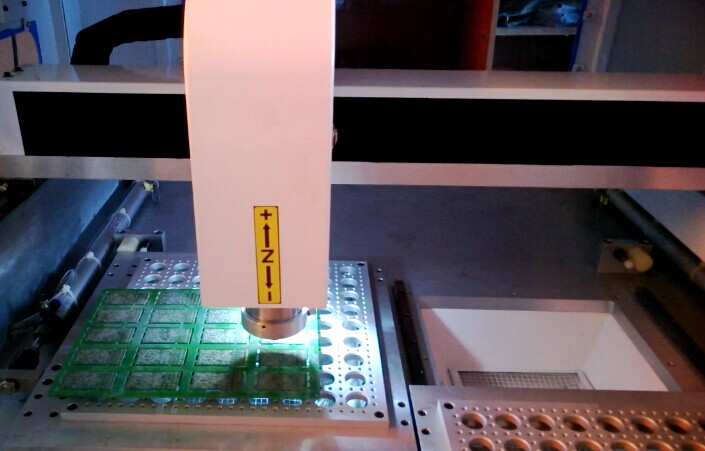

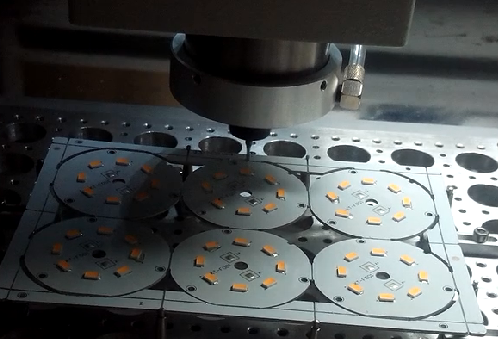

CW-F04 is a machine cutting multi-panel PCB according to the pre-edited path by use of high-speed motion of milling cutter. Getting rid of the cutting flaws of manual cutting, C-CUT or Push cut, it improves product quality and reduces scrap rates.

The machine adopts human-machine interface vie Windows XP, which is simple and convenient, able to achieve automatic cutting path correction, edit and modification of high-pixel CCD program, block program and single-step program.

The PCB with two interactive plates loading and unloading materials will effectively reduce machine idle time, thus achieve an ideal productivity. With a high-pixel CCD amplification lens, auxiliary demonstration program and editing function, the machine can work more accurately and get sharper graphics. Equipped with automatical mark positioning correction system, the motion path is displayed in real time and traced in an analog way; all in all realize a clear vision.

Due to the automatic position correction function, PCB can cut more accurately. Within the maximum 3mm, the machine can correct the deviated position automatically, therefore lowers the standard for operators to place the plate, in this way to improve work efficiency immensely.

The copy function of the two plates, the block, arrays, multi-angle plate, the single tracing modification function and block editing function indeed simplify the process of programming and increase efficiency.

Application:

Our advantage:

1. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
2. We can also customize the products to fulfill different requirements.
3. We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for
Electronic Assembly Industry.
4. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time
is just 3 days.
5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
6. Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your
reliable partner and will return to you with good products and good support.
7. Professional: We have been in this business for more than 13 years. We have a strong professional
team with various experiences.
8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
9. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due
to our mistakes
10. Price: we always offer competitive prices and help our customers to cost down.
11. Quality: we do 100% inspection before the shipment.

Why us

1.Engineers available to service machinery oversea.	Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2.Mature technique & forerunner to process makes high quality machinery.	As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend.
3.Effective customer service. pcb router machine	All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be easy reachable by customers and provide prompt replies to solve their problems and create value for customers.
4.One year warranty for the machines except accessories. b router machine	Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
Our mission:	Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
Our Vision:	PCB industry to become the world's leading solution providers PCB separator. pcb router machine

Additional Information:

Payment Terms	T/T, Paypal
Minimum Order	1 Set
Lead Time / Delivery Time	10 Day(s)
Sample Available	NO
Delivery Details	7-10 days after payment receipt
FOB Port	Shenzhen,
Loading Info	FOB Shenzhen via Sea/Air
Packing Info	plywood case
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
