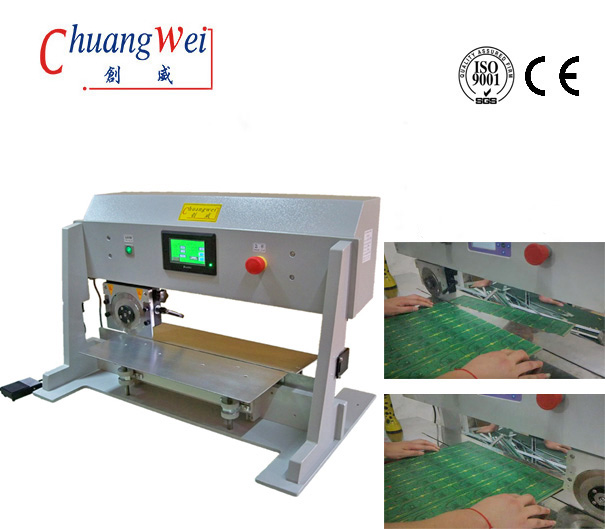

PCB Depaneling with A Round Knife,Cutting V Groove Pcb for Pcb Depanelizer Machine Specification:
|
Model
|
CWV-1A
|
|
PCB Cutting Length (mm)
|
460/600/1000/1500
|
|
Cutting Speed (mm/s)
|
100/200/300/500
|
|
Cutting Thickness (mm)
|
0.6~3.5
|
|
Power Supply
|
110/220 V
|
|
Size (mm)
|
770*510*450
|
|
Weight (Kg)
|
55
|
|
Guarantee (Year)
|
1
|
|
Delivery (Day)
|
1
|
|
Ability (Set)
|
1000
|
|
Min. Order (Set)
|
1
|
Features:
1.Round knife, manually cutting against lower linear knife, for reduced stress
2.Separate pre-scored PCB assembly without stress on either PCB or component
3.One touch programming of cut length with digital display
4.Separating speed is adjusted by a rotary knob
5.Handle Intermittent scoring or cut-outs
6.Board with projected component can be cut precisely
7.Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
8.Optional PCB conveyor belt to remove finished board
9.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
Our Advantage :
1.CWVC-1 Pcb depanelizer original manufacturers, price concessions
2.Promise day technical support services
3.Limit the handling of complaints, half an hour back to customers
4.Depanel Experts, the provision of professional PCB sub-programme
5.Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Why us:
1.Engineers available to service machinery oversea. Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2.Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend.
3.Effective customer service. pcb router machine
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
4.One year warranty for the machines except accessories. b router machine
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
Our mission:
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
Our Vision:
PCB industry to become the world's leading solution providers PCB separator. pcb router machine
Our Service:
# 1 day delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for quality
# Free sharpening for blades within 3 months
# Controlled drawings make strict confidentiality for clients
