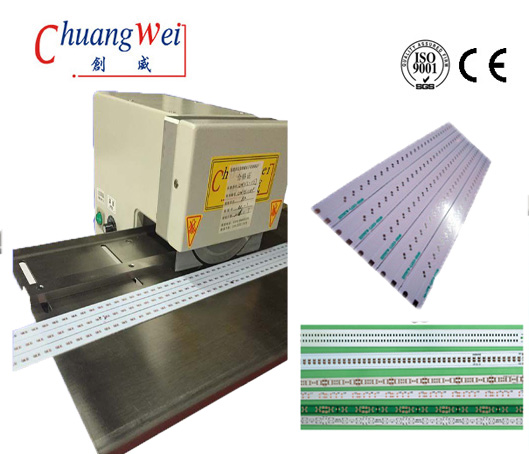

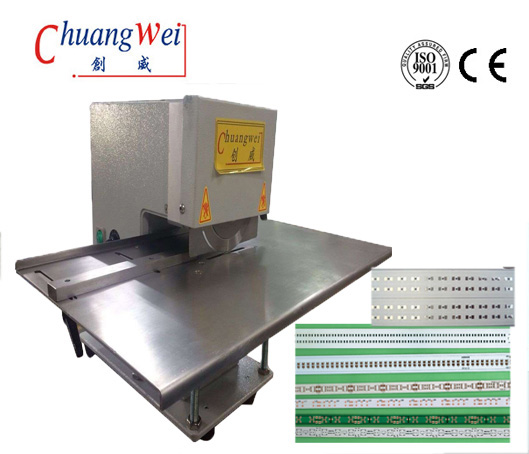

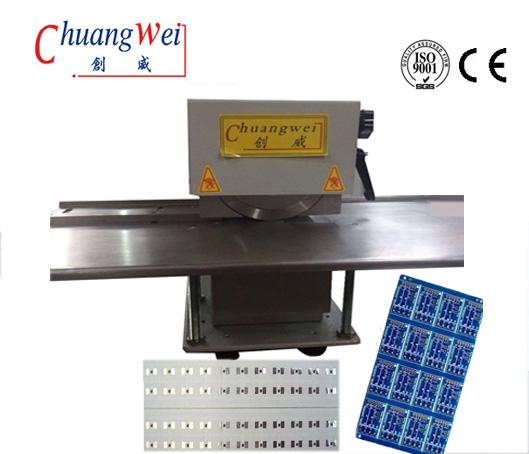

V-Cut Pcb Separator Pre Scoring PCB Depaneling V Scored PCB Cutter Machine with CE Certification,CWVC-1SJ

V-Cut Pcb Separator Pre Scoring PCB Depaneling V Scored PCB Cutter Machine with CE Certification,CWVC-1SJ

Product description: V-Cut Pcb Separator Pre Scoring PCB Depaneling V Scored PCB Cutter Machine with CE Certification,CWVC-1SJ
INQUIRY

V-Cut Pcb Separator Pre Scoring PCB Depaneling V Scored PCB Cutter Machine with CE Certification,CWVC-1SJ

Feature:

1.Apply to any V-cut PCB panel
2.Optional separating speed, can be adjusted easily
3.The positioning board can calibration location before and after to suit for different V-CUT clearance panel.
4.Can be equipped with long platform,exchange platform simply and easily
5.The inner cutting stress lower than the industrial standard 500μ strain.avoid tin crack ,deformation etc phenomenon.
6.The upper circular blade can be vertically adjusted clearance
7.Blades can be reuse many times through regrind
V-Cut Pcb Separator Pre Scoring PCB Depaneling V Scored PCB Cutter Machine with CE Certification,CWVC-1SJ Detailed Product Description:

Model CWVC-1SJ
Max. PCB cutting length unlimited
Blade amount up and down 2 circular blades
PCB cutting mode down circular blade with motor-driven
PCB cutting speed 0~400mm/s
Voltage and Power 110/220V 60W
Cutting machine size :500 * 435 * 345
Cutting machine weight 20Kg
Staff allocated one person hold PCB with both hands and feed between the circular blades for cutting , fix position on pre-scored V groove
workbench optional (can make different length according to your board)

Change motor-driven V-CUT PCB Depaneling machine:

1. Max. PCB cutting length is unlimited

2. The price is very economical
3. Safety use and easy operation
4. Blade can be re-grinded to use

V-Cut Pcb Separator Pre Scoring PCB Depaneling V Scored PCB Cutter Machine with CE Certification,CWVC-1SJ Specification:

Weight(kg):	20
Cutting Length(mm):	Unlimited
V-Cut Speed(mm/s):	0-400
Blades Shape:	Two Circle Blades
V-cut PCB Cutting Thickness()mm:	0.8-3.0
Voltage And Power(V):	110/220
Dimensions(mm):	500435345

Our best service
1 . Engineers available to service machinery oversea .
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2 . One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

3. Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively communicate with one another, foster enthusiasm and participate in decision-making. To be sea reachable by customers and provide prompt replies to solve their problems and create value for customers
4. Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years’ experience on PCB separator machines and soldering machines. pub router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend.
