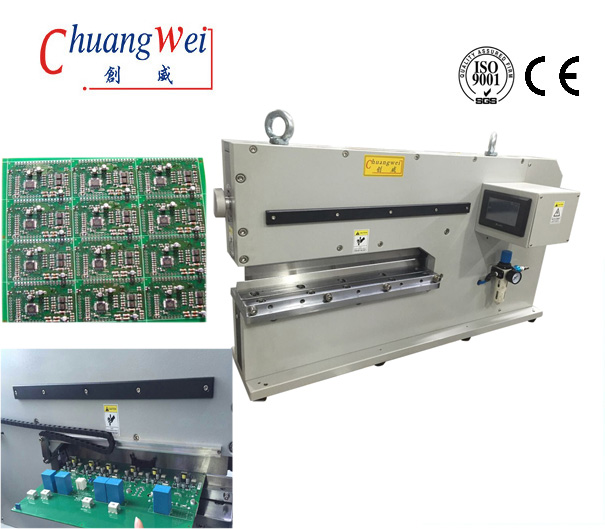

PCB Cutting Machine/PCB Separator PCB Depanelizer/LED Strip Separator,CWVC-480

Product description: PCB Cutting Machine/PCB Separator PCB Depanelizer/LED Strip Separator,CWVC-480
INQUIRY

Automatic PCB Cutting with PCBa Depaneling,Separator-V-cut PCB Depanel Feature:

1. Separates boards up to 3.5mm thick

2. Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors

3. Operator foolproof! Panels cannot be inserted into the Knives except on the score line

4. Pneumatically driven

5. Handles high components up to 70mm

6. Bow waves that can occur with round knives are avoided

7. Easy adjusting of distance between knives

8. Independent lab tests show less than 200 macrostrains of stress measuring compression and tension.

9. Has capacity counter function

PCB with V-cut Depanelizer,Cutting PCBa with V Groove,Specification:

Model	CWVC-480
The Longest Minimize:	480 mm
Size:	990×425×350 mm
Minimize thickness	0.3-3.5 mm
Machine Weight :	220 kg
Use	Cutting PCBA , FR4 .Metal board , Alum Board , Etc.

Video of Pcba Separator,PCBa Depaneling,Aluminum PCB Cutting,CWVC-480:

Our advantages:

- gap for insertion of the board can be adjusted easily by means of a knob in the front of the machine
- integrated waste suction prepared
- repaneling process without vibrations
- easy-to-service design
- pneumatically driven (FESTO)
- operation and maintenance possible without precognition
- high power reserves, operations already possible at 2 bar
- pneumatic control placed in a separate unit for easier maintenance

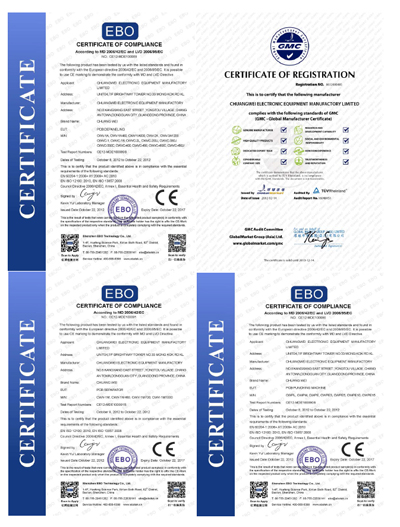

Depaneling-PCB Cutting by Using Pcba Separator Machine with CE：
