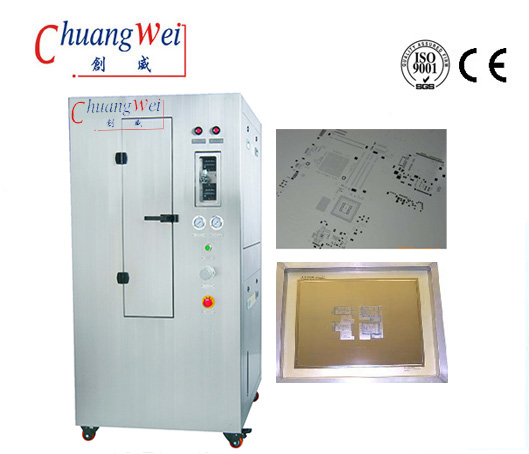

Pneumatic Stencil Cleaner,Stencil Cleaning System,CW-750

Product description: Pneumatic Stencil Cleaner,Stencil Cleaning System,CW-750
INQUIRY

Pneumatic Stencil Cleaner,Stencil Cleaning System,CW-750 ：

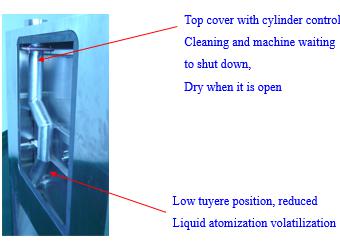

Three-stage filtration system, low exhaust and S-type exhaust pipe design, cleaning fluid recycling, the amount of liquid is very small Three - level filtration system：

Project	Fitter	Brand	Filter replacement cycle
Level1 1mm	Impurities/Labels	CW	No need
Level2 20um	Solder ball/Rosin particles	CW	12 months
Level 1um	Paste/rosin paroles	CW	1~3 mon(past)

Project	Specifications
Cleaning fluid	Alcohols, water-based solvents, are applicable
Applicable screen size	≤ 750mm of the screen can be cleaned
Cleaning time	2-5 mins
Drying time	3-6 mins
Cleaning fluid consumption	200~300m/pcs

CW-750 Technical Parameters：

Name	Technical Parameters
Applicable steel	75075010mm and the below dimensions
The maximum volume of the tank	41L
Best liquid usage	25~35L
Cleaning method	360 degree rotary liquid spray cleaning and compressed air drying
Cleaning time	2~5 mins(paste)
Drying time	3~5 mins
Extremal air supply	0.5~0.6(Map)
Air consumption	200~600L/Min
Outlet size	D124*30mm maximum gravitational speed 3m/sec
Filtration system(level tree) Net weight	First/second filter/filter bag:1mm*20um(filter impurities and labels)
Filtration system(level tree) Net weight	Three filter elements:1um(fitter solder paste and rosin particles)
Net weight	300KG
Dimension	8009501650mm
