  • Product description: High Precision USB Hot Bar Soldering Machine,CWPDY2IN
  • INQUIRY

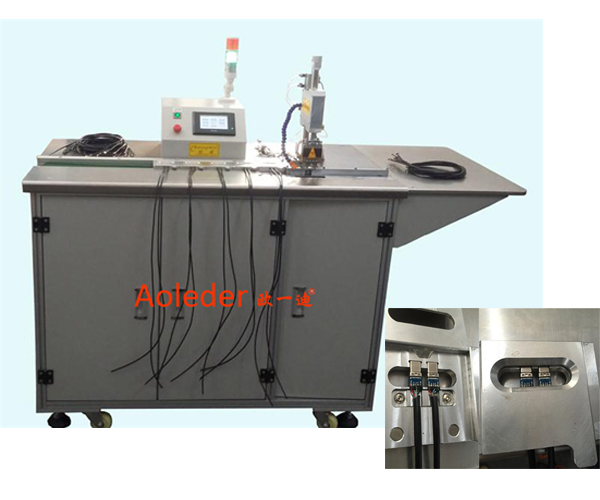

USB Hot Bar Soldering Machine,CWPDY2IN

PCB Soldering Mahcine,CWPDY2IN

USB Hot Bar Soldering Machine,USB Soldering Robots-SMT CWPDY2IN Features:
1.On~line conveyor loading and landing automatically;
2.Has alarm system, manual test & adjustment is available;
3.Double side soldering at the same time;
4.Advanced temp. controlling system, high precision temp & soldering time controlling;
5.Stable temp. profit, high frequency inverter frequency, short power cycle;
6.LCD display for soldering temp;
7.Closed loop PID temperature control with visible LED display;
8.Three section of heating setting, the temperature rises quickly and steadily;
9.20 groups of programs can be stored, using RRPROM to prevent data from missing.

PCB Soldering Mahcine,CWPDY2IN
 USB Hot Bar Soldering Machine,Hot-bar Bonding for USB,CWPDY2IN Specification:
Model:                                 CWPDY2IN
Power:                                 6*2 KW
Power Supply:                     220V 50Hz
Inverter frequency:             4*2 KHz
Load sustained rate:            20%
Heating up and cooling down:    Yes
Temp. range:                      50-600℃
Cooling mode:                   Air
Max product size:              80mm
Pressure range:                  10-50N
Temp. Control Precision:  ±3%
Thermocouple:                   E or K optional
Thermode head size:          5~50mm
Weight:                              200kgs
Dimension:                        1600*700*1300mm
