Home > Screw Tightening Machine

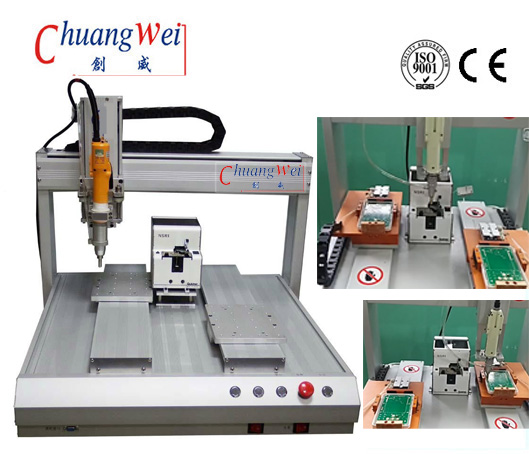

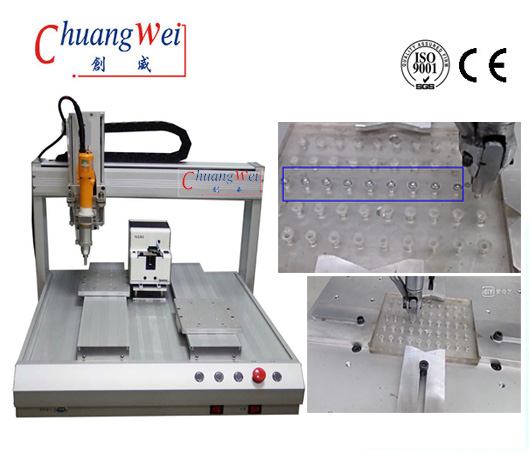

LCD Display Desktop Screw Driver Higher Efficiency,CWAS

Product description: LCD Display Desktop Screw Driver Higher Efficiency,CWAS
INQUIRY

LCD Display Desktop Screw Driver Higher Efficiency,CWAS Features:

Reduce cost: Locking two kinds of screws at the same time ,the staff can operate quickly ,improve the efficiency.
efficiency: Fastening two kinds of screws at the same time, higher efficiency, and 3600-4000pcs screw per hour,no waiting.
More relax: single equipment for single worker, Just finished loading.
Reliability: Automatic alarm system, work 20 hours more.
Generality: Touch screen display programmable achieve more operations, Through a simple. programming, can be put into production, convenient for production and management.

LCD Display Desktop Screw Driver Higher Efficiency,CWAS Function:

Have smart detection function, like missing screwing/screw stand out /screw loose…etc.;

Good flexibility, like universal fixture for different size mobile phone;

Good generality: adapt for M1.0-M4 by change in the screw guider,

Perfect machine outline: small outline size is suit for different cell line configuration,

Auto mode don’t need operator and no waiting time.

LCD Display Desktop Screw Driver Higher Efficiency,CWAS Specification:

Model	CWAS
Brand Name	Chuangwei
Certification	CE ISO
Type	Precision Screwdriver
No-Load Speed	500mm/sec
Air Pressure	0.4Mpa
Application Screw Hear	All Type
Usage	Lock ,Screw ,Automatic Screw Feeding
Power	220V 50HZ
Outline Size	600840640mm(LWH) 17025540mm(XYZ)
Driver	Six axis step motor
Precision	±0.02mm
Control system	PLC+TP
Feeding	Absorption type
Program	Teaching Type
COM	USB
Voltage	220VAC,50HZ
Program Recording Mode	100set,4000 Points(USB SUPPORT COPY)
Weight	80KG
Payment Terms	T/T L/C
Packaging	Plywood case
Display model	Teaching pendant LCD(320*240) or touch screen
Motor system	Japan precision micro-stepper motor
Drive mode	timing belt + screw rod +guide rail
Power	AC110V/220V 300W(internal switch)
I/O signal	12 Inputs/12 Outputs
Control	RS232
Edit model	Teach pendant
Working Environment Temperature	5-40℃
Working Environment Humidity	20-90%
Suite model	M1.2-M3.0

Applicable Subject:

Mobile phones, car electronic products, household appliances, power supply, instrument equipment, LED, computer keyboards, PAD, toys and so on.
