  • Desktop Hot Bar Soldering for FPC FFC HSC,CW-2A2P

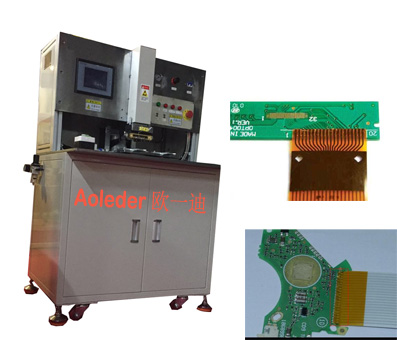

Desktop Hot Bar Soldering for FPC FFC HSC,CW-2A2P

Desktop Hot Bar Soldering for FPC FFC HSC,CW-2A2P

  • Product description: Desktop Hot Bar Soldering for FPC FFC HSC,CW-2A2P
  • INQUIRY

Desktop Hot Bar Soldering for FPC FFC HSC,CW-2A2P Simple introduction:

This device is designed for double - deck working mode of double welding head.  The equipment adopts high density metal material, so the lifting temperature is fast and the service life is special.  The equipment operation is easy to understand. It is special in welding connector and wire with single side and double sides.


Desktop Hot Bar Soldering for FPC FFC HSC,CW-2A2P Specification:

1. Customized based on the connector

2. Double jig welding

3. Double- desk working mode

4. Can achieve ultra-fine pitch welding

5.Applicable to welding the cable and connection of communicating machine

NO.

Subject

Parameters

1

Machine size

L850×W650×H1320mm

2

Working size

Max150x150mm

3

weight

98KG

4

working air pressure

0.5~0.80 Mpa

5

power supply

AC220V±1050HZ.2000W

6

Lifting temperature setting

五段

7

work environment

10~60℃,40~95

8

Welding pressure

4~50N

9

Welding pressure error

±1N

10

Temperature setting

RT500, 误差±2

11

Heating rate

250/s

12

Welding time

1-99.9S

13

welding precision

Pitch 0.2mm

14

Welding head sizeM metal)

Max 50*3mm

15

Welding head sizeT  metal)

Max 100*3mm

16

Welding head flatness

±0.02mm

17

Pin distance range

0.2mm

18

Alignment mode

Artificial alignment

19

Positioning fixture

2

20

Way of discharge

Artificial pick and place

21

Start mode

Pressed by hands

22

Heating method

Pulse heating, the rise time is 1 ~ 2S

23

Work Stage

Left and right automatic push and pull

24

Platform control

Precision motor control, error <0.02mm

Desktop Hot Bar Soldering for FPC FFC HSC,CW-2A2P Function Module:

Double welding head design

Applicable to double-sided welding products

Left and right platform design

In the production, It weld with left and right cycle , saving time and improving efficiency

The upper and lower welding heads are driven by the motor

Up and down position is precise, the same accuracy when it repeats

The left and right platform is driven by motor

Left and right position is precise, the same accuracy when it repeats

Touch screen programming

Easy to understand and program, we can enter data location directly
