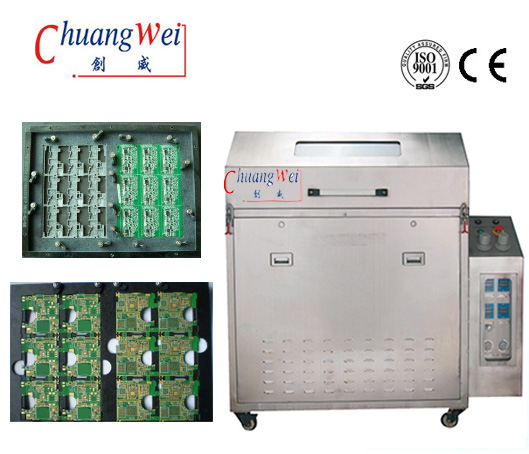

Customized Cleaning Basket Size for Fixture Cleaning Machine,CW-5100

Product description: Customized Cleaning Basket Size for Fixture Cleaning Machine,CW-5100
INQUIRY

Machine and Artificial / Ultrasonic Cleaning PCB Fixture Comparison：

Condenser cleaning	Manual or ultrasonic cleaning	Comparing results
Automatic cleaning,100% safe	Charged cleaning or artificial iron brush cleaning+solution,poor safety	≥
Batch cleaning,fast and efficient	Cleaning time is long,low efficiency	≥
One-touch operation,no need to special cleaning staff	Iron brush fixture,dirty,tired,need special cleaning personal	≥
Up and down,around the full range of cleaning,cleaning thoroughly,high cleanliness	Condenser on the dead ends,the surface dirty cleaning difficult	≥
Solution cycle repeated repeated use	High Cleaning costs	≥
Spay cleaning and rinsing,governance well intact	Iron brush cleaning will be raised,the surface off the phenomenon,the impact of follow-up product quality	≥
Cleaning +rinse+dry,after cleaning the surface without solvent	No rinse,after cleaning solvent residue,after the use of heat when the smell out after the smell out	≥

CW-5100 Washing machine reflow condenser before and after comparison :

Specifications of CW-5100 Cleaning system,Stencil Cleaner,PCBA Cleaning System:

• Cleaning basket size ：Φ1000mm× 200mm(H) , Maximum cleaning height ：450mm, Special size should be customized

• Cleaning fluid capacity ：80L（ maximum ）

• Rinse fluid capacity ：80L（ maximum ）

• Cleaning method ： Spray Rotary Cleaning

• Dry way ： Compressed air dry

• Recommended cleaning time ：3-15mins

• Recommended cleaning and drying time ：2-3mins

• Recommended rinse time ：1-2mins

• Recommended drying time ：3-6mins

• Cleaning filter ： Using 3-level filtration

• Class 1 filter ：2mm（ Filter debris ）

• Level 2 filter ：100um（ Primary filter flux, iron and other lumps ）
