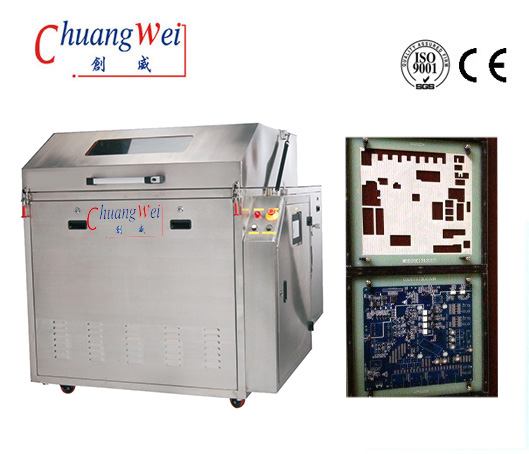

Hot Air Drying Mode smt cleaning equipment,Stencil Cleaner Machine with 80L Capacity,CW-5200

Product description: Hot Air Drying Mode smt cleaning equipment,Stencil Cleaner Machine with 80L Capacity,CW-5200
INQUIRY

Electric Fixture Cleaning Machine,Washing Machine for Fixture,CW-5200 Specifications:

• Cleaning basket size ：1000mm Diameter round basket × 200mm(H) , Special size need to be customized

• Cleaning fluid capacity ：80L（ maximum ）

• Rinse fluid capacity ：80L（ maximum ）

• Cleaning method ： Spray rotary cleaning and rinsing

• Dry way ： Heated air knife dry

• Recommended cleaning time ：5-20 mines

• Recommended rinse time ：2-3 mines

• Recommended drying time ：5-20 mines

• Cleaning filter ： Using 3-level filtration

• Class 1 filter ：2mm（ Filter impurities ）

• Class 2,3 filters ：100um/20um（ Filter flux, rosin and so on ）

• Blower ：3.7KW Heated to 80°

• Electric pump ：2.2KW/1.1KW

• Diaphragm pump ： 1 inch diaphragm pump (pumping, drainage)

• Air supply ：0.5Mpa~ 0.7Mpa,600-800L/min

• power supply ：AC380V,3Phase,22KW

• weight ：about 500KG

• dimension ：1380(L) ×2100mm(W) ×1400mm(H)

CW-5200 Machine and Artificial / Ultrasonic Cleaning Fixture Comparison

Spray cleaning	Manual or ultrasonic cleaning	Comparing results
Spray pressure can be adjusted, batch cleaning, fast and efficient	Cleaning time is long, low efficiency	≥
One-touch operation, no need to special cleaning personnel	Iron brush fixture, dirty, tired, need special cleaning personnel	≥
Up and down, around the full range of cleaning, cleaning thoroughly, high cleanliness	Fixture on the dead, the surface dirty, cleaning difficult	≥
The solution is recycled several times to save the solvent	Need to immersion cleaning, cleaning costs are high,	≥
Spray cleaning and rinsing, governance well intact	Iron brush cleaning will be raised, the surface off the phenomenon, the impact of follow-up product quality	≥
Cleaning + rinse + dry, after cleaning the surface without solvent	No rinse, after cleaning solvent residue, after the use of heat after the smell of smell out	≥
