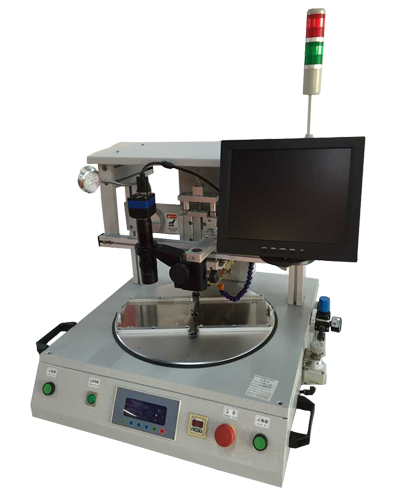

Hot Bar Soldering Machine-Hotbar Soldering Machine

Hot Bar Soldering Machine-Hotbar Soldering Machine,PCB Soldering for FPC to PCB/PWB

Extremely short cycle time with rotary table design;

Product loading and unloading can be done during the heat;

sealing process;

High quality heat seal application up to 0.25mm pitch;

Pneumatic bonding head provide up to 3,900N force;

Digital programmable pressure control with LCD display;

Closed loop PID temperature control with visible LED display;

Bonding cycle is triggered by a real time pressure sensor ;

Floating Thermode ensure consistent pressure and heat transfer;

along the flexfoil to LCD and/or PCB;

Precision product fixtures (2X), easy exchange, provided with

micrometer alignment and vacuum to fix components;

Optional CCD alignment module with frame, camera, lens,

monitor and illumination for fine pitch application;

Full microprocessor logic control.
