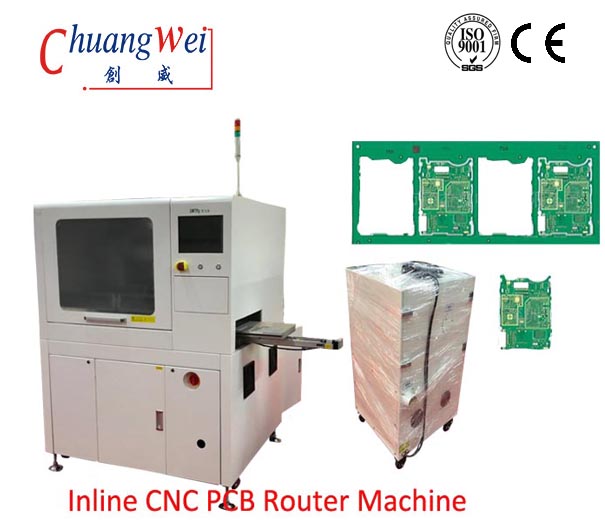

High Speed PCB Depaneler Machine,PCB Depanelizer Machine,PCB Depaneling Equipment

High Speed PCB Depaneler Machine,PCB Depanelizer Machine,PCB Depaneling Equipment

  • Product description: High Speed PCB Depaneler Machine,PCB Depanelizer Machine,PCB Depaneling Equipment
  • INQUIRY

High Speed PCB Depaneler Machine,PCB Depanelizer Machine,PCB Depaneling Equipment Features:

The machine series is mainly an on-line sub-board equipment, which uses a milling cutter to run at a high speed.

Pre-edit path trajectories are segmented to avoid manual breaks, V-CUT or PUSH cutting, and increase production

Product quality, reduce scrap rate, this machine uses human-machine interface WIN7 operating system, and is equipped with high-pixel CCD vision

System, teaching production and editing to modify the cutting path is very fast, can be single-step and overall modification, deletion, addition

Program track. This model adopts follow-up dust removal and double gripping at the same time, which improves the dust removal ability and grasping and releasing.

Board efficiency.

High Speed PCB Depaneler Machine,PCB Depanelizer Machine,PCB Depaneling Equipment

Standard machine and Non-standard machine, the main area

Don't be different in processing range, standard machine single table cutting range 300*360mm, increase machine single table cutting

Cutting range 400*450mm. Secondly, the appearance dimensions are different and the installation space is slightly different.

Dust collection method can absorb dust and suction dust according to customer needs. The suction dust is on the suction port at the top, from

The surface of the PCBA is vacuumed, and the dust is sucked down to vacuum the dust suction port on the lower surface of the PCBA board.

Dust removal function, built-in vacuum cleaner.

The exit mode can be selected according to the needs of the belt mode, the track mode or the cylinder mode, and can be respectively corresponding to the flow.

The water line back end has different needs.

This model comes standard with a 12-inch industrial touch screen for quick and easy operation.

The edge-finding function is a high-precision cutting function that can specify certain cutting positions using CCD photo positioning and cutting.

Cut the edges to achieve precise cutting.

High Speed PCB Depaneler Machine,PCB Depanelizer Machine,PCB Depaneling Equipment Specification:

XYZ itinerary

450*600*60mm (S)

XYZ itinerary

620*700*60mm(L)

Router

Min 0.8mm,max 3.0mm

Cutting Speed

0-100mm/s

Shape of Cutting

Line,L shape,Square,Round,Arc

Airspeed

60m/min

Spindle motor

Imported from Germany

Cutting range

330*330mm(S)

Cutting range

500*420mm(L)

Machine Size

1732*1100*2088mm(S)

Machine size

2032*1220*2088mm(L)

Host control

Industrial computer

Servo control

Fuji servo

Static elimination

SMC Ion generator

Vacuum method

Under vacuum

Precision position

0.1mm

Screw guide

HIWIN/THK

Track width adjustment

Automatic

Into board direction

Left in right out

Entry and exit method

Vacuum suction

Board thickness

0.6-5mm

Power

A220V 50Hz

Power consumption

1.5Kw

Air consumption

10N1/min

HMI

12 inch industrial capacitive screen

Operation Environment

Win 7

Permission distinction

Password

Dust filtration

Secondary filtration

Weight

900Kg
