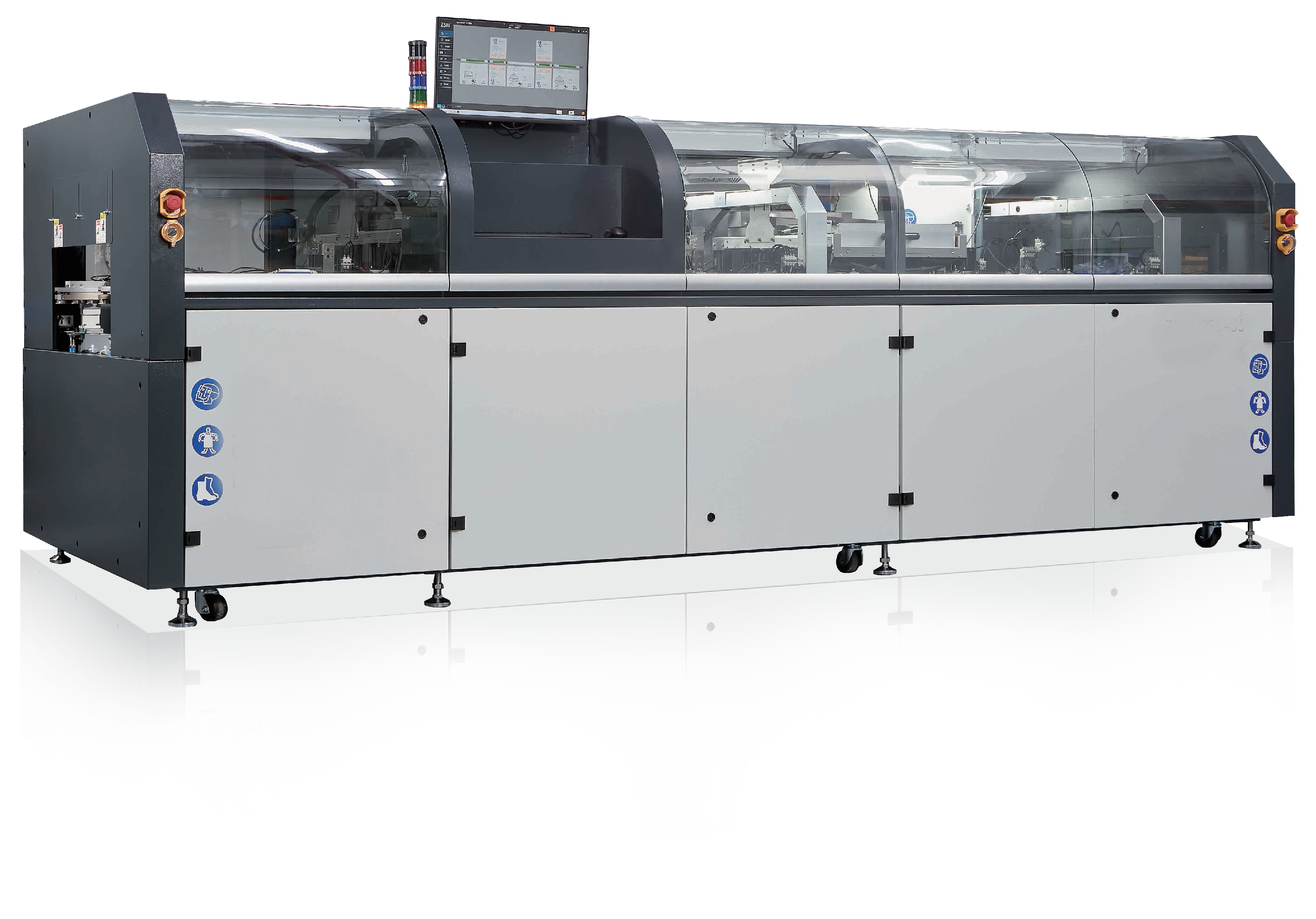

Selective Soldering System with Leading Selective Soldering Technolgy

1. Precision spray module:

(1) Motion control: X/Y axis servo control;

(2) Positioning accuracy: ±0.2mm;

(3) Spray diameter: 2...8mm (nozzle aperture: 130μm);

(4) Spray method: selective precision point spray or line spray;

(5) Flux pressure tank capacity: 5L;

(6) Number of spray heads: 2PCS

(1) Segmented modular layout;

(2) Preheating is flexible and energy-saving;

(3) Top hot air preheating with good uniformity;

(4) Bottom short-wave infrared preheating, high preheating efficiency;

(5) Set temperature: room temperature -200℃;

(6) The preheating time and temperature can be set.
