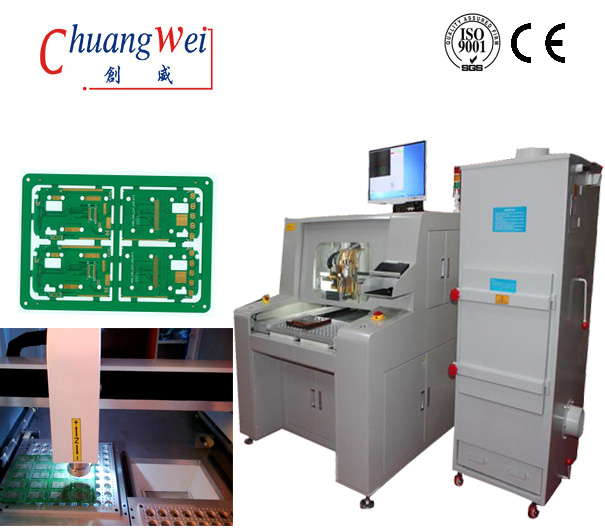

Quality PCB Separator For Motorized - PCB Depaneling & PCB Separator & PCB Cutting Machine,CW-F04

Product description: Quality PCB Separator For Motorized - PCB Depaneling & PCB Separator & PCB Cutting Machine,CW-F04
INQUIRY

Quality PCB Separator For Motorized - PCB Depaneling & PCB Separator & PCB Cutting Machine,CW-F04 Product Description:

PCB Size:	450*350( Any Size Customize )	Spindle:	KAVO
Power:	220/110V	Vacuum Cleaner:	3.5KW
Working Table:	2	Name:	PCB Router

The best sulotion for PCB depaneling

2. Avoids the stress produced mechanically by using punch or bending

3. Suitable for cutting of a circle, arc and line of a finished plate

Rotational speeds adjustable

1. The spindle head consists pf a high-speed motor and the main shaft, which can be replaced separately to reduce the cost of maintenance

2. The high-speed spindle uses air radiation to reduce volume

3. The head of the main shaft is suitable for the milling cutter specially designed for a PCB

4. The rotational speeds of the main shaft can be adjusted from 2K-60K RPM according to the thickness of PCB

The screen is friendly and can be switches between Chinese and English

1. Equipped with a build-in image capture, workpiece image and operation on the same screen, easy operation

2. The function selection, manual function selection and instruction for shift are selected by mouse

3. Mechanical parameters and function setting can be locked up with a password to avoid operation the equipment accidentally.

Value matching is accurate and instruction is conveniently

1. During instructing, there are three kinds of speed optional

2. Cooperating with the monitor, the diameter of a milling cutter, a circle and square frame can be set

PCB Depanelers,PCB Depaneling Equipment,PCB Separators Specification

Standard working area	320*320mm
Power	220V, 4.2KW
Manipulator Repeatability	±0.02mm
Resolution	±0.01mm
Board Positioning	Dual workstation with nest fixture or pin fixture
Panel Location	Located by tooling holes or edges of PCB
Loading	Manual
Unloading	Manual
Panel Size	320*320mm(standard)
Panel Thickness	0.5-3.5mm
Spindle motor	KAVO Spindle
Tool Change	Manual
Dust filtration system	3KW Vacuum Cleaner
Vision system	High resolution CCD video camera
Programming	Vision assisted point to point manual teaching
Editing Function	Dry run vision assisted / test run mode
Machine weight	500kgs
Machine dimension	113140108cm

Our advantage:

1 . We supply a wide range of products and provide one-stop service for Electronic Assembly Industry .
2 . We can also customize the products to fulfill different requirements .
3 . We are a leading manufacturer of ESD Products, Cleanroom Products , Tools & Instruments for Electronic Assembly Industry .
4 . We keep a lot of stock for regular products and we can support small orders . Usually , our lead time is just 3 days .
5 . Credibility: We are the 6th year Alibaba Gold Supplier . Our customers are located all over the world .
6 . Gratitude : We cherish and feel grateful to every customer for the business you give us . We are your reliable partner and will return to you with good products and good support .
7 . Professional: We have been in this business for more than 10 years. We have a strong professional team with various experiences .
8 . We keep doing new product development . Our goal is to enhance our competitive capacity constantly.
9 . Promise : we are always ready to shoulder the responsibility if any loss caused to our customer due
to our mistakes
10 . Price : we always offer competitive prices and help our customers to cost down .
11 . Quality : we do 100% inspection before the shipment .

Why us

1.Engineers available to service machinery oversea.	Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2.Mature technique & forerunner to process makes high quality machinery.	As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend.
3.Effective customer service. pcb router machine	All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be easy reachable by customers and provide prompt replies to solve their problems and create value for customers.
4.One year warranty for the machines except accessories. b router machine	Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
Our mission:	Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
Our Vision:	PCB industry to become the world's leading solution providers PCB separator. pcb router machine

Additional Information:

Payment Terms	T/T, Paypal
Minimum Order	1 Set
Lead Time / Delivery Time	10 Day(s)
Sample Available	NO
Delivery Details	7-10 days after payment receipt
FOB Port	Shenzhen,
Loading Info	FOB Shenzhen via Sea/Air
Packing Info	plywood case
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
