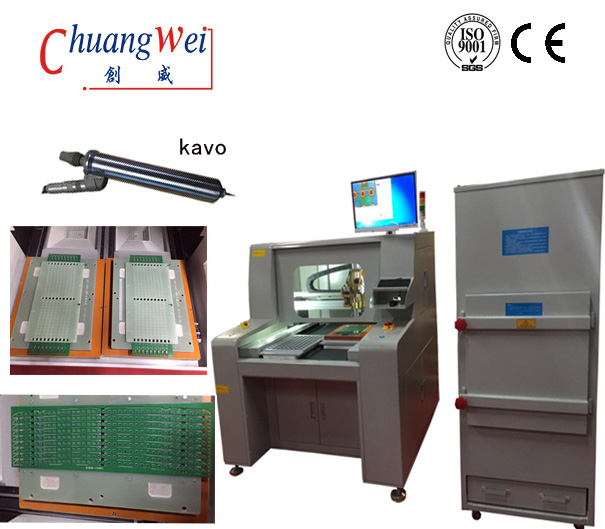

Dual workstation with nest fixture or pin fixture PCB Routing Machine - Printed Circuit Board Routing Machine,CW-F04

1. Avoids problems such as the tin break and damage to the compnent caused by manually bending a plate

2. Avoids the stress produced mechanically by using punch or bending

3. Suitable for cutting of a circle, arc and line of a finished plate

Rotational speeds adjustable

1. The spindle head consists pf a high-speed motor and the main shaft, which can be replaced separately to reduce the cost of maintenance

2. The high-speed spindle uses air radiation to reduce volume

3. The head of the main shaft is suitable for the milling cutter specially designed for a PCB

4. The rotational speeds of the main shaft can be adjusted from 2K-60K RPM according to the thickness of PCB

The screen is friendly and can be switches between Chinese and English

1. Equipped with a build-in image capture, workpiece image and operation on the same screen, easy operation

2. The function selection, manual function selection and instruction for shift are selected by mouse

3. Mechanical parameters and function setting can be locked up with a password to avoid operation the equipment accidentally.

Value matching is accurate and instruction is conveniently

1. During instructing, there are three kinds of speed optional

2. Cooperating with the monitor, the diameter of a milling cutter, a circle and square frame can be set

1 . We supply a wide range of products and provide one-stop service for Electronic Assembly Industry .
2 . We can also customize the products to fulfill different requirements .
3 . We are a leading manufacturer of ESD Products, Cleanroom Products , Tools & Instruments for Electronic Assembly Industry .
4 . We keep a lot of stock for regular products and we can support small orders . Usually , our lead time is just 3 days .
5 . Credibility: We are the 6th year Alibaba Gold Supplier . Our customers are located all over the world .
6 . Gratitude : We cherish and feel grateful to every customer for the business you give us . We are your reliable partner and will return to you with good products and good support .
7 . Professional: We have been in this business for more than 10 years. We have a strong professional team with various experiences .
8 . We keep doing new product development . Our goal is to enhance our competitive capacity constantly.
9 . Promise : we are always ready to shoulder the responsibility if any loss caused to our customer due
to our mistakes
10 . Price : we always offer competitive prices and help our customers to cost down .
11 . Quality : we do 100% inspection before the shipment .

PCB Singulation PCB Routing Equipment with Windows 7 System

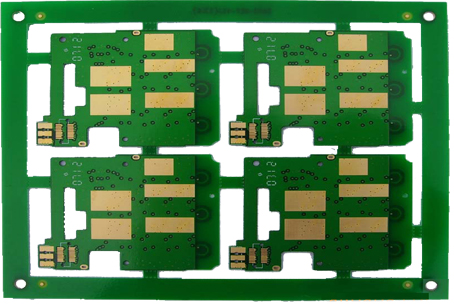

1.Quick and Efficient PCB Singulation:

When considering the numerous methods available for PCB singulation, it is difficult to decide which might be the best. At ChuangWei we propose that our PCB routers are the most efficient, and quickest way to singulate PCB's. For stress free depanelization we utilize a router bit which minimizes the stress on components, therefore keeping them intact and working proficiently. The router bit adjustment system will automatically shift up to 5 different depth levels, which will cut down on bit replacement. Router bit cutting speed has a maximum of 50mm per second, while the traveling speed is a maximum of 800mm per second. Our PCB routers also contain a high speed spindle which will sustain precision while speeding up the process. The frame is sure to hold up with precise ball screws employed on an X, Y, Z axis, and be speedy with a spindle motor that creates up to 60,000rpm spins.

Flexible panel designs are easy to deal with through the various cutting patterns available on the routers. A fixture-based dust vacuum removal system utilized from the bottom side assures that there will be no shift or warp during PCB singulation.

2.Easy to Use:

Not only are our PCB routers efficient and fast, they are very easy to operate as well. PCB singulation can be started on our machines with the simple touch of an external button. Image processing software makes it effortless to program specific cutting paths with point and click technology. The CCD camera incorporated allows for automatic alignment compensation, making depanelization even more unproblematic. Designed for easy access and repairs, our machines are low maintenance as well.

3.Value for a Low Cost:

The effectiveness of our routers can not be disputed. Quick, efficient, easy to use, and very low maintenance, it's not hard to see that our routers are a valuable asset for the low cost it comes at.
