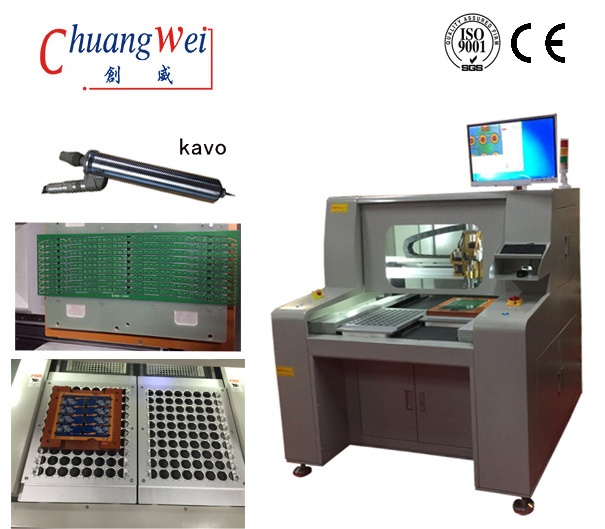

Router Pcb Separator Machine,Pcb Routing Depanel Machine,Pcb Rourted Cutting Machine,CW-F04

Specification:

Model

CW-F04

Standard working area

320*320mm(Standard)

Power

220V, 4.2KW

Manipulator Repeatability

±0.02mm

Resolution

±0.01mm

Board Positioning

Dual workstation with nest fixture or pin fixture

Panel Location

Located by tooling holes or edges of PCB

Loading

Manual

Unloading

Manual

Panel Size

320*320mm(standard)

Panel Thickness

0.5-3.5mm

Spindle motor

0.5kW Morning Star Spindle

Dust filtration system

3KW Vacuum Cleaner

Vision system

High resolution CCD video camera

Programming

Vision assisted point to point manual teaching

Editing Function

Dry run vision assisted / test run mode

Machine weight

650kgs

Machine dimension

1350*1250*1450cm

CNC PCB Router Programmable PCB Routing Machine Features :

1. Two-slide PCB Separator

2. Low stress

3. Sharp cutting edge

4. Manul loading /unloading

5. High speed cutting by 4 axes control

6. Easy teaching with image processing

PCB Routing Equipment - PCB separator,Description:

2-way Sliding Exchanger

This work exchanger provides a simultaneously in-and-out working space to limit the idle time, which in turn reaches the utmost output value.

Route Duplication

The user only needs to set two referent points to duplicate a same route in saving programming time.

Routing Bit Sectioning

The user may set a designated distance, and have the routing bit shift-up or -down in order to make a new section of touting bit to cut boards for multiplying the life of the routing bit.

Friendly GUI

Windows 7 system and Graphical User Interface (GUI) is adopted, which enables the user to learn and use the program easily. A 10 x zoom-in image is shown on screen for setting all points.

Additional Information:

Payment Terms

T/T, Paypal

Minimum Order

1 Set

Lead Time / Delivery Time

10 Day(s)

Sample Available

NO

Delivery Details

7-10 days after payment receipt

FOB Port

Shenzhen,

Loading Info

FOB Shenzhen via Sea/Air

Packing Info

plywood case

Target Market(s)

North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East

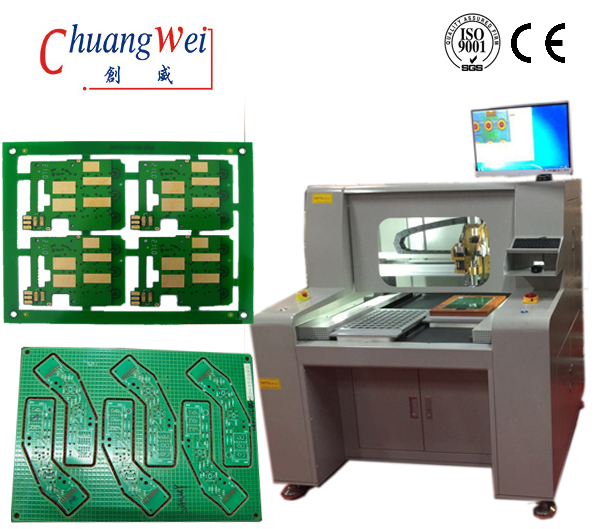

Low Maintenance PCB Automatic Router Machine High Resolution Ccd Video Camera,CW-F04 Sample Application:
