PCB Separator Pcb V Cut Machine With Pneumatically Driven / Electromagnetic Valve Control,CWVC-480

PCB Separator Pcb V Cut Machine With Pneumatically Driven / Electromagnetic Valve Control,CWVC-480

  • Product description: PCB Separator Pcb V Cut Machine With Pneumatically Driven / Electromagnetic Valve Control,CWVC-480
  • INQUIRY

PCB Separator Pcb V Cut Machine With Pneumatically Driven / Electromagnetic Valve Control,CWVC-480 Feature:
1. Separates boards up to 3.5mm thick
2. Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors
3. Operator foolproof! Panels cannot be inserted into the Knives except on the score line
4. Pneumatically driven
5. Handles high components up to 70mm
6. Bow waves that can occur with round knives are avoided
7. Easy adjusting of distance between knives
8. Independent lab tests show less than 200 macrostrains of stress measuring compression and tension.

9. Has capacity counter function


Specification:

Model

CWVC-480

The Longest Minimize:

480 mm

Size:

990×425×350 mm

Minimize thickness

0.3-3.5 mm

Machine Weight :

220 kg

Use

Cutting PCBA , FR4 .Metal board , Alum Board , Etc.

Our advantages:

- gap for insertion of the board can be adjusted easily by means of a knob in the front of the machine
- integrated waste suction prepared
- repaneling process without vibrations
- easy-to-service design
- pneumatically driven (FESTO)
- operation and maintenance possible without precognition
- high power reserves, operations already possible at 2 bar
- pneumatic control placed in a separate unit for easier maintenance

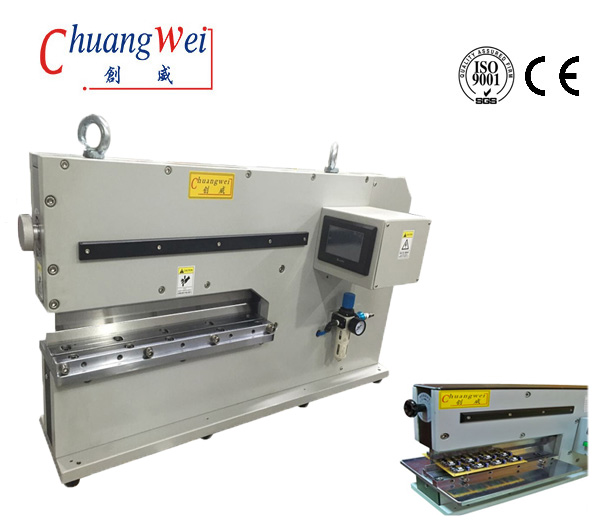

PCB Separator Pcb V Cut Machine With Pneumatically Driven / Electromagnetic Valve Control,CWVC-480 Picture:


PCB Separator MCPCB Depaneling Machine For SMT Assembly Line With CE Certification:
