  • Metal Cutter Machine Depaneling MCPCB Aluminium Long LED Strip Panel,CWVC-1SN
Metal Cutter Machine Depaneling MCPCB Aluminium Long LED Strip Panel,CWVC-1SN

Metal Cutter Machine Depaneling MCPCB Aluminium Long LED Strip Panel,CWVC-1SN

  • Product description: Metal Cutter Machine Depaneling MCPCB Aluminium Long LED Strip Panel,CWVC-1SN
  • INQUIRY

Metal Cutter Machine Depaneling MCPCB Aluminium Long LED Strip Panel,CWVC-1SN Specification:

Number Of Blades:

9 blades

Max Cutting Length:

Unlimited

Standard Plug-in Platform Length:

160mm

Standard Light Bar Platform Length:

1150mm

Voltage:

110/220V

Cutting Wide:

8-25mm

Cutting Thickness:

0.8-3.5mm

Plug-in Platform Machine dimensions(mm)

335*405*330mm

Light Table Platform Overall Dimensions(mm)

1155*405*330

Weight:

70kg

Feature:
1.Can be cut 9 PCB s at same time V cut lines are not deformed and fast speed
2.Each up and down with 1 blade , standard 9 group at the same time cutting ,I improve efficiency
3.Each machine face and back with a conveyor and could freedom to adjust altitude  ,easy to operate
4.Minimize the internal stress generated when cutting the board to avoid cracking
5.Suitable for all PCBs with V-CUT
6.Up and down round knife can be adjusted accurately and can be repeated over and over again

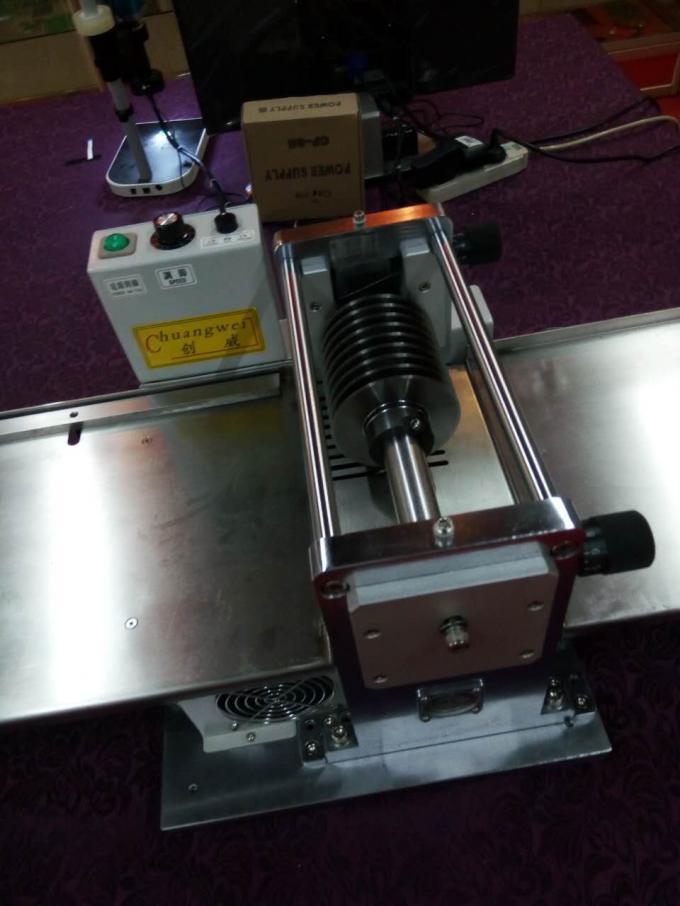

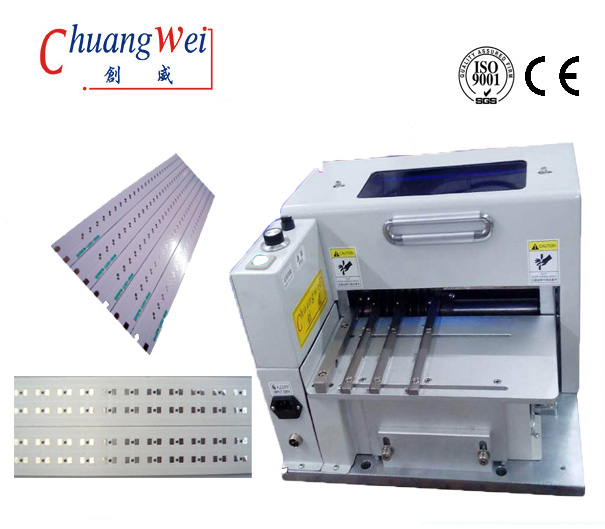

Metal Cutter Machine Depaneling MCPCB Aluminium Long LED Strip Panel,CWVC-1SN Picture:
