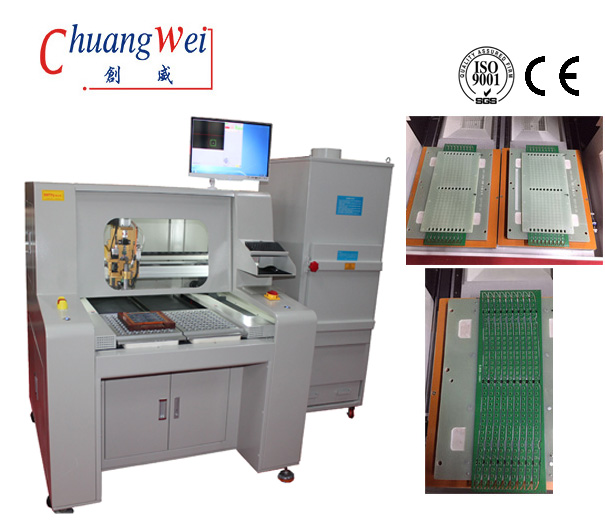

CNC Router Manufacturer from China,PCB Routing with Router,CW-F04

Product description: CNC Router Manufacturer from China,PCB Routing with Router,CW-F04
INQUIRY

Cutting MCPCB with Router Pcb Depanelizer,CW-F04 Description:

Warranty:	1 Year	Colour:	White
Spindle:	KAVO	Power:	220V
PCB Thickness:	0.5-3.5mm	Name:	PCB Separator Router

1.Quick and Efficient PCB Singulation:When considering the numerous methods available for PCB singulation, it is difficult to decide which might be the best. At ChuangWei we propose that our PCB routers are the most efficient, and quickest way to singulate PCB's. For stress free depanelization we utilize a router bit which minimizes the stress on components, therefore keeping them intact and working proficiently. The router bit adjustment system will automatically shift up to 5 different depth levels, which will cut down on bit replacement. Router bit cutting speed has a maximum of 50mm per second, while the traveling speed is a maximum of 800mm per second. Our PCB routers also contain a high speed spindle which will sustain precision while speeding up the process. The frame is sure to hold up with precise ball screws employed on an X, Y, Z axis, and be speedy with a spindle motor that creates up to 60,000rpm spins.Flexible panel designs are easy to deal with through the various cutting patterns available on the routers. A fixture-based dust vacuum removal system utilized from the bottom side assures that there will be no shift or warp during PCB singulation.

2.Easy to Use:Not only are our PCB routers efficient and fast, they are very easy to operate as well. PCB singulation can be started on our machines with the simple touch of an external button. Image processing software makes it effortless to program specific cutting paths with point and click technology. The CCD camera incorporated allows for automatic alignment compensation, making depanelization even more unproblematic. Designed for easy access and repairs, our machines are low maintenance as well.

3.Value for a Low Cost:The effectiveness of our routers can not be disputed. Quick, efficient, easy to use, and very low maintenance, it's not hard to see that our routers are a valuable asset for the low cost it comes at.

Router Pcb Depanelizer,Cutting Pcb with CNC Router,CW-F04 Specification:

Model	CW-F04
Standard working area	320*320mm(Standard)
Power	220V, 4.2KW
Manipulator Repeatability	±0.02mm
Resolution	±0.01mm
Board Positioning	Dual workstation with nest fixture or pin fixture
Panel Location	Located by tooling holes or edges of PCB
Loading	Manual
Unloading	Manual
Panel Size	320*320mm(standard)
Panel Thickness	0.5-3.5mm
Spindle motor	0.5kW Morning Star Spindle
Dust filtration system	3KW Vacuum Cleaner
Vision system	High resolution CCD video camera
Programming	Vision assisted point to point manual teaching
Editing Function	Dry run vision assisted / test run mode
Machine weight	650kgs
Machine dimension	135012501450cm

PCB Depaneling with Router,PCB Separator,PCB Depanelizer,Features:
1. Smooth cutting finish only by router cutting .
2. There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .
3. One-touch program changeover .
4. Able to cut liner and arc with router machine , diminish the restriction on PCB design .
5. Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .
6. Powerful Dust Collection minimized dust adhesion on PCB .
7. Developed high performance router bit that expanded bit life and relief littering .
8. Cut down PCB cost because need not making V-groove on PCB

PCB Separaor with CE Certification-PCB Depaneling:

Our advantage:

1. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
2. We can also customize the products to fulfill different requirements.
3. We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for
Electronic Assembly Industry.
4. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time
is just 3 days.
5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
6. Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your
reliable partner and will return to you with good products and good support.
7. Professional: We have been in this business for more than 13 years. We have a strong professional
team with various experiences.
8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
9. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due
to our mistakes
10. Price: we always offer competitive prices and help our customers to cost down.
11. Quality: we do 100% inspection before the shipment.

Why us

1.Engineers available to service machinery oversea.	Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2.Mature technique & forerunner to process makes high quality machinery.	As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend.
3.Effective customer service. pcb router machine	All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be easy reachable by customers and provide prompt replies to solve their problems and create value for customers.
4.One year warranty for the machines except accessories. b router machine	Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
Our mission:	Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
Our Vision:	PCB industry to become the world's leading solution providers PCB separator. pcb router machine

Additional Information:

Payment Terms	T/T, Paypal
Minimum Order	1 Set
Lead Time / Delivery Time	10 Day(s)
Sample Available	NO
Delivery Details	7-10 days after payment receipt
FOB Port	Shenzhen,
Loading Info	FOB Shenzhen via Sea/Air
Packing Info	plywood case
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
