  • Product description: PCBA Misprinting Board Cleaning Machine,Large Size Stencil Cleaning Machine,CW-800
  • INQUIRY

Large Size Stencil Cleaning Machine,Wave Solder Pallet Cleaning Machine,CW-800 :

1.Quick & super clean effect: SMT steel mesh, copper mesh, resin mesh, screen, PCB misprinting board and PCBA board, can quickly and effectively clean the surface after printing to the residual solder paste, red plastic and other pollutants;

2.Standard water-based automatic cleaning mode: In a cleaning room to complete the cleaning, rinsing, drying all the cleaning process, small size, compact structure;

3.Full Process Visualization: The cleaning room is equipped with a visual window, the cleaning process at a glance;

4. Wide range of applications: SMT stencil, screen, India plastic governance, SMT scraper, large size PCBA, Misprint plate;

5.DI water real-time resistivity cleanliness monitoring system:Used to monitor the cleaning effect, the resistivity can be set, resistivity control range 0 ~ 18MΩ;

6.Nozzle pressure adjustable and symmetrical design: To solve the SMT steel mesh in the cleaning process by high pressure spray conditions under the tension problem;

7.Standard cleaning tank heating system: Water-based process on the needs of heating emulsification, greatly improving the cleaning efficiency, shorten the cleaning time;

8.Low operating costs:

Built-in filter device can be used to achieve the recycling of solvents to extend the pollutant load saturation time, at the end of the cleaning using compressed air recovery pipeline and the pump within the residual chemical solution, can effectively save 50% cleaning agent;

9.Can be cleaned oversize size PCBA 800mmx800mm)

10.High pressure fan + four wind knife wind cut dry: Using 5.5HP high pressure fan, more efficient (3 to 5 minutes), more thoroughly!

11.Full Chinese large touch screen interface:Color touch screen, PCL control, according to the program run; can set the solution temperature, cleaning time, rinse times / time, rinse temperature, drying time, drying temperature, conductivity monitoring and other parameters.

CW-800 Technical specifications for Water - based Steel Net Cleaning Machines

  1. Applicable screen size: maximum 750(L) ×750(W) × 40(H)mm Special size should be customized
  2. Liquid tank capacity 50L* 2PCS
  3. Cleaning method Steel net reciprocating movement, cleaning liquid high pressure liquid jet
  4. Rinse method: Open loop DI water or closed-loop chemical spray
  5. Drying method: Four wind knife wind cut dry
  6. Cleaning time: 2-5mins
  7. Cleaning isolation time: 1min
  8. Rinse time: 2-5 mins
  9. Rinse Drying time: 3-5 mins
  10. Resistivity tester range: 0--18MΩ
  11. Liquid heating temperature: Room temperature 60
  12. Liquid tank heater power(KW)9KW
  13. Rinse tank heater power(KW):       9KW
  14. noise: Less than 65 decibels
  15. Drying temperature: Room temperature --90
  16. Drying heater power KW): 9KW
  17. The total power is about: 33KW Normal working power 3-6KW
  18. Chemical liquid level filter: 0.45μm
  19. DI water filter: 0.45μm
  20. DI water supply: 30~60L/min
  21. DI water pressure: 0.4mpa
  22. water intake: G3/4Inner teeth
  23. Drainage: G3/4Inner teeth
  24. Row of chemical liquid mouth: Φ 12 hose
  25. Spray pump: 4HP Stainless steel multi - stage centrifugal pump
  26. Exhaust size: Φ123mm
  27. Power supply / gas source: AC380V  50HZ  90A  /  0.45Mpa-----0.7Mpa
  28. net weight: 500Kg
  29. dimension: about 1500mm(L) ×1260mm(W) × 1900mm(H)

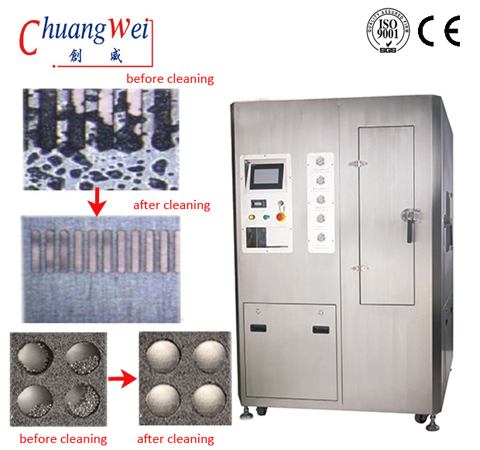

3.Partial picture of CW-800



4.Large Size Stencil Cleaning Machine,CW-800

Using a unique double four spray bar cleaning, rinse design (1 map identifies each nozzle 10 nozzles), Double four wind knife wind cut dry design (2 logo), Greatly improve the cleaning efficiency, rinse with online filtering, to ensure cleanliness)


5.PCBA Misprinting Board Cleaning Machine,Large Size Stencil Cleaning Machine,CW-800 Applications:

CW-800 Is a "water-based cleaning fluid cleaning SMT steel mesh" cleaning process designed for the third generation of steel mesh cleaning machine

Automatic completion of cleaning, rinsing, drying process.(Using a unique double four spray bar cleaning, rinse design, double four wind knife wind cut dry design, rinse with online filtering, to ensure cleanliness)

Used in: SMT stencil, copper mesh, plastic mesh, resin net, plastic fixture, PCB misprinting board and a small amount of PCBA cleaning, can effectively clean the surface after printing and the hole wall residual solder paste, red plastic and other pollutants

A Wider Range of Applications:




Sample PCBA Misprinting Board

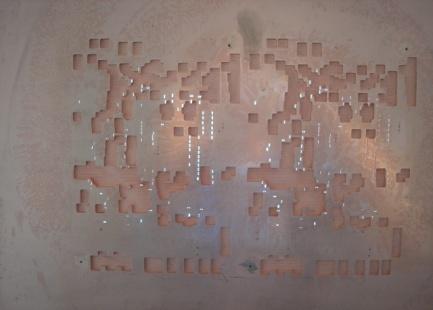

Sample SMT Copper Mesh
