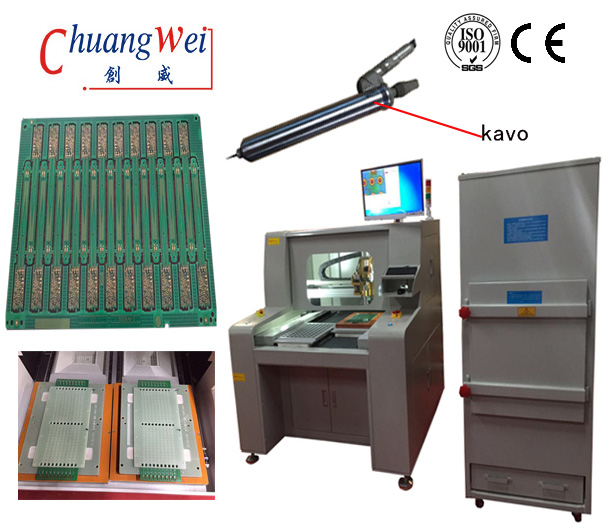

Economic Semi Automatic Router Machine-PCB Router Machines,CW-F04

Economic Semi Automatic Router Machine-PCB Router Machines,CW-F04

  • Product description: Economic Semi Automatic Router Machine-PCB Router Machines,CW-F04
  • INQUIRY

Inline Router with Board Handling Machine,CW-F04 Introduction:

1. Hardware

SPINDLE Morning Star spindle and inverter
CCD:Sony 520 line industrial cameras
LENS:Computar EX2C
Screw:TBI Precision ground ball screw imports
Guide:HIWIN widening Imported linear guide rail
MOTOR:JiaBao LCF Series
I/O CONTRONL CARD: HFC PCI-9074
DRIVER CONTRONL CARD: HFC PCI-9074
I/O CARD:PCI-9074-64pcs/-38pcs
Static cleanup:STATIC-ST401A Series
Computer:RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface: AOC LCD17",Logitech mouse

2. software

Control system:Windows 7 Professional
Operation GUI:English Windows 7
Program edit:Inline
Vision system:CCD AOTU offset
Control system : F 1.0.2 version

3.Performance Parameters

Dimensions(W*D*H) : 1220mm*1450mm*1420mm
Weight : 550KG
Height offset : 60~110mm
Motor type : JiaBao series
Positioning repeatability : 0.001mm
Axis working area(max) : 650mm*500mm
PCB fixation : standard,specialization
PCB loading/unloading : manual

4.Why Choose Us?

1. Engineers available to service machinery oversea

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. Mature technique & forerunner to process makes high quality machinery

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines.

Our R&D team continuously upgrade the existing machines to meet the market development trend.

3.Effective customer service

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.

4.One year warranty for the machines except accessories

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.

We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

Video of Routing PCB with PCB Router Machines,PCB Routing Equipment - PCB depanelizer


CW-F04,Inline PCB Routing Equipment PCB Router Our service:

1 . We supply a wide range of products and provide one-stop service for Electronic Assembly Industry .
2 . We can also customize the products to fulfill different requirements .
3 . We are a leading manufacturer of ESD Products, Cleanroom Products , Tools & Instruments for Electronic Assembly Industry .
4 . We keep a lot of stock for regular products and we can support small orders . Usually , our lead time is just 3 days .
5 . Credibility: We are the 6th year Alibaba Gold Supplier . Our customers are located all over the world .
6 . Gratitude : We cherish and feel grateful to every customer for the business you give us . We are your reliable partner and will return to you with good products and good support .
7 . Professional: We have been in this business for more than 10 years. We have a strong professional team with various experiences .
8 . We keep doing new product development . Our goal is to enhance our competitive capacity constantly.
9 . Promise : we are always ready to shoulder the responsibility if any loss caused to our customer due
to our mistakes
10 . Price : we always offer competitive prices and help our customers to cost down .
11 . Quality : we do 100% inspection before the shipment .


Router-Cutting PCB,Depaneling PCB with CNC Router Additional Information

Payment Terms

T/T, Paypal

Minimum Order

1 Set

Lead Time / Delivery Time

10 Days

Sample Available

No

Delivery Details

7-10 days after payment receipt

FOB Port

ShenZhen

Loading Info

FOB ShenZhen via Sea/Air

Packing Info

Plywood case

Target Markets

North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
