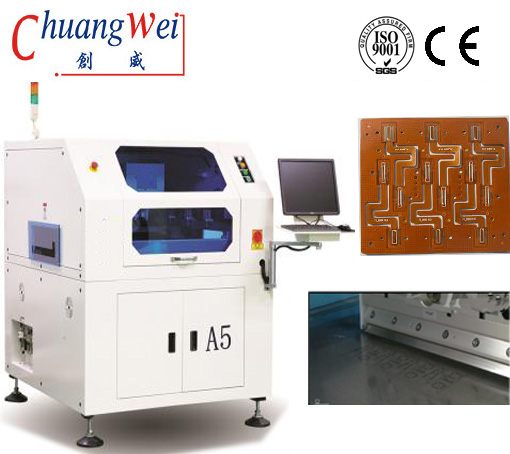

Assembly of Flexible Circuits with Lead-Free Solder,CW-A5

Product description: Assembly of Flexible Circuits with Lead-Free Solder,CW-A5
INQUIRY

1.Assembly of Flexible Circuits with Lead-Free Solder,CW-A5 Parameters:

Screen Frames	Min Size	470X370mm
	Max Size	737X737mm
	Thickness	25~40mm
PCB Min Size		50X50mm
PCB Max Size		400X340mm
PCB Thickness		0.4~6mm
PCB Warp age		＜1%
Transport Height		900±40mm
Transport Direction		Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed		Max 1500mm/S Programmable
Board Location PCB	Support System	Magnetic Pin/Up-down table adjusted/support block by hand
	Clamping System	side clamping,vacuum nozzle
Print head		Two independent motorised print heads
Squeegee Speed		6~200mm/sec
Squeegee Pressure		0~15Kg
Squeegee Angle		60°/55°/45°
Squeegee Type		Stainless steel(Standard), plastic
Stencil Separation Speed		0.1~20mm/sec Programmable
Cleaning System		Dry、Wet、Vacuum (Programmable)
Table Adjustment ranges		X:±10mm;Y:±10mm;θ:±2°
Table Adjustment control		Table Adjustment control of linear motor
Machine
Repeat Position Accuracy		±0.01mm
Printing Accuracy		±0.025mm
Cycle Time		<7s (Exclude Printing & Cleaning)
Product Changeover		<5Min
Air Required		4.5~6Kg/cm²
Power Input		AC:220±10%,50/60HZ 1Φ 3KW
Control Method		PC Control
Machine Dimensions		1220(L)X1355(W)X1500(H)mm
Machine Weight		Approx:1000Kg

2.Solder Paste Screen Printing Equipment for FPC / PCB,CW-A5 Features:

3.Surface Mount Process-Fpc Printing Machine with Stencil,CW-A5:

a) Wide compatibility for PCB dimensions from 50mm x50mm to 400mm x 340mm for different thickness of PCB

b) High printing resolution

1. High positional accuracy, repeated positioning accuracy ±0.01mm; printing accuracy 0.025mm.

2. Support glue printing

c) Automatic control improves production efficiency, quality control and saves production cost:

1. Automatic steel mesh positioning

2. Automatic PCB alignment

3.Automatic adjustment of squeegee pressure

4.Automatic printing

5.Automatic stencil cleaning (dry-type, wet-type and vacuum-type)

d) Adopt company independently developed suspended print head with programmable pressure automatic adjustment system by air cylinder. Support on-line real time pressure feedback and automatic squeegeepressure balancing. Accurate pressure control ensures perfect forming effect of solder paste.

e) Programmable motor controls the squeegeeseparation speed and stroke from stencil, to realize multi-method demold.

f) Multi-functional PCB fixed positioning system, convenient and accurate PCB positioning.

g) Upward and downward visual positioning.

h) Built-in image processing system

i) Support 2D,SPC functions

j) PCB thickness adjust by electronic table.

k) Printing translation drived by stright connecting screw rod of motor

4.Flexiable Circuit Board Solder Paste with Stencil -Applicable PCB Types

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, aerospace and aviation, besides general electronics products
