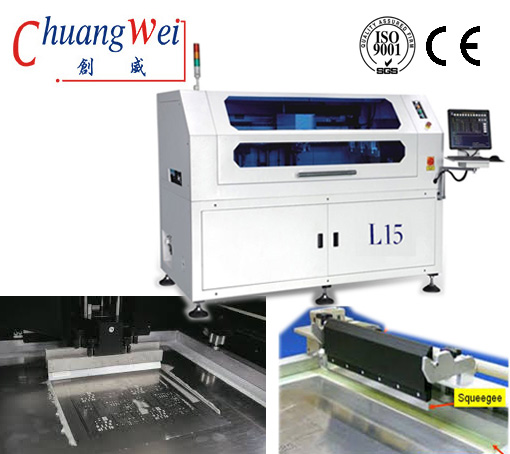

FPC PCB Solder Paste Printing Machine with Squeegee Blade,CW-L15

Product description: FPC PCB Solder Paste Printing Machine with Squeegee Blade,CW-L15
INQUIRY

1.FPC PCB Solder Paste Printing Machine with Squeegee Blade,CW-L15 Application:

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, aerospace and aviation, besides general electronics products

2.Solder Paste Squeegee Promotion-Shop for Promotional Solder Paste Printings,CW-L15 Specifications:

Model	L15
Item	L15
Min Size	1100X300mm
Max Size	1800X750mm
Thickness	25~40mm
PCB Min Size	80X50mm
PCB Max Size	1500X350mm
PCB Thickness	0.4~6mm
PCB Warpage	＜1%
Transport Height	900±40mm
Transport Direction	Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed	Max 1500mm/S Programmable
Support System	Magnetic Pin/Up-down table adjusted/supportblock
Clamping System	Elastic side clip / Z direction sheet
Squeegee Speed	6~200mm/sec
Squeegee Pressure	0~15Kg Pressure control
Squeegee Angle	60°/55°/45°
Squeegee Type	Stainless steel(Standard), plastic
Stencil Separation Speed	0.1~20mm/sec Programmable
Cleaning System	Dry、Wet、Vacuum (Programmable)
Table Adjustment ranges	X:±10mm;Y:±10mm;θ:±2°
Machine
Repeat Position Accuracy	±0.015mm
Printing Accuracy	±0.03mm
Cycle Time	<15s (Exclude Printing & Cleaning)
Product Changeover	<5Min
Air Required	4.5~6Kg/cm²
Power Input	AC:220±10%,50/60HZ 1Φ 3KW
Control Method	PC Control
Machine Dimensions	2500(L)X1200(W)X1500(H)mm
Machine Weight	Approx:1800Kg

3.Automatic PCB Stencils Printing with Squeegee Blade,CW-L15 Features:

a) Wide compatibility for PCB dimensions from 80mm x50mm to 1500mm x 350mm for different thickness of PCB

b) High printing resolution

1. High positional accuracy, repeated positioning accuracy ±0.015mm; printing accuracy 0.03mm.

2. Support glue printing

c) Automatic control improves production efficiency, quality control and saves production cost:

1. Automatic steel mesh positioning

2. Automatic PCB alignment

3.Automatic adjustment of squeegee pressure

4.Automatic printing

5.Automatic stencil cleaning (dry-type, wet-type and vacuum-type)

d) Adopt company independently developed suspended print head with programmable pressure automatic adjustment system by air cylinder. Support on-line real time pressure feedback and automatic squeegeepressure balancing. Accurate pressure control ensures perfect forming effect of solder paste.

e) Programmable motor controls the squeegeeseparation speed and stroke from stencil, to realize multi-method demold.

f) Multi-functional PCB fixed positioning system, convenient and accurate PCB positioning.

g) Upward and downward visual positioning.

h) Built-in image processing system

i) Support 2D,SPC functions

j) PCB thickness adjust by electronic table.

k) Printing translation drived by stright connecting screw rod of motor

4.Characterization of Printing Solder Paste Additional Information：

Payment Terms	T/T, Paypal
Minimum Order	1 Set
Lead Time / Delivery Time	10 Days
Sample Available	No
Delivery Details	7-10 days after payment receipt
FOB Port	ShenZhen
Loading Info	FOB ShenZhen via Sea/Air
Packing Info	Plywood case
Target Markets	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
