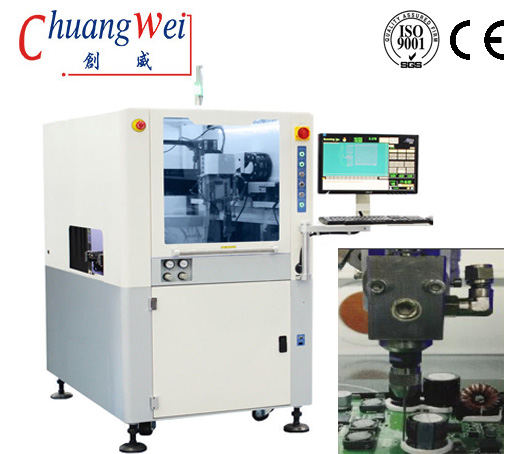

Conformal Coating Machine-Used SMT / PCB Equipment Marketplace,CWCC-3L

Product description: Conformal Coating Machine - Used SMT / PCB Equipment Marketplace,CWCC-3L
INQUIRY

Conformal Coating Machine - Used SMT / PCB Equipment Marketplace,CWCC-3LTechnical parameters:

Model	CWCC-3L
External Size LW H	101013601675mm(LWH)
Weight	500KG
Control Mode	IPC+control card
Software	CW software+Windows
Programming	Teaching box
Axis	X,Y,Z
Drive	Servo motor +ball screw
Max. move speed	800mm/s
Coating scope	L580*W580mm
Max .PCB height	up 90 down 90mm
Rotation angle	±180º
Positioning accuracy	0.02mm
Repeat accuracy	0.02mm
Conveyor quantity	1
Width adjusting mode	auto
Width adjust speed	250mm/min
Conveyor height	900±20mm
Conveyor speed	2-5mm/min
Conveyor direction	L-R(R-L optional)
PCB edge space	≧5mm
Conveyor motor power	DC24V 69W
Communication port	SMEMA port
Nozzle quantity	2 sets

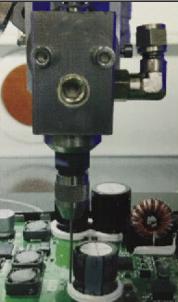

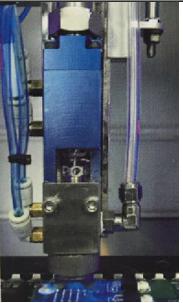

Nozzle type	pin type spray nozzle,film nozzle
Tilt angle	0~35º
Single coating width	2-30mm(According to the selected value)
Material volume	5L
Draft capacity	15 m³ /min
Power supply	AC220V 50/60Hz
Total power	2.2KW
Pressure	0.4Mpa
Programming panel	Standard
Material Detection	Standard
Camera location	Standard
Clamp device	Standard
Bar code	Standard
UPS	Standard
Waste recycling	Standard

3 Axis Conformal Coating Machine,CWCC-3L Features:
1.Motion controller use computer+,WINDOWS operating system, failure alarming menu;
2.Available by manual teaching programming which is easy and quick;
3.Integral steel moving platform, to ensure the smooth running;
4.X, Y, Z three-axis motion;
5.Servo motor+ball screw drive;
6.Run precision of 0.02mm,automatically eliminate difference;

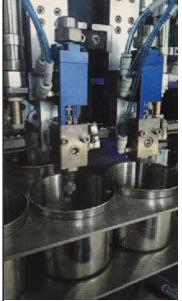

7.Nozzles automatic cleaning device;
8.Special aluminum alloy rail and stainless steel conveyor chain;
9.Independent material container;
10.Equip with gas collection, exhausting devices;
11.SMEMA port to connect with other devices.

Selective Conformal Coating System | Dispensing Equipment Nozzle option and funcion:

]

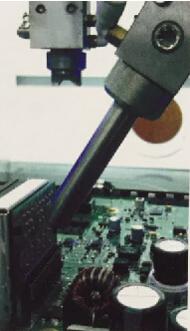

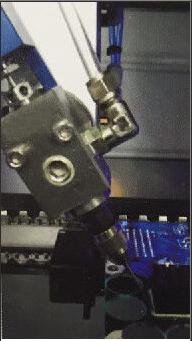

Tilt for coating

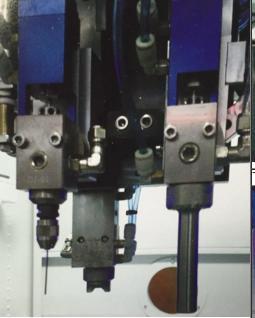

Can equipped with 2 sets of nozzle.
It can choose 3 from 5 that SA-W5, SA-W3,DJ-01, LA-W30, SC-W10
2 of them can be 35° tilt to achieve 5 axis working. The nozzle can down 75mm, and 3 nozzles can switch arbitrarily. The whole holder can be 360° rotation which can make high efficiency accuracy no-dead corner.
