  • Robot Screw Tightening Machine-hread Inserts Screw Tightener,CWAS

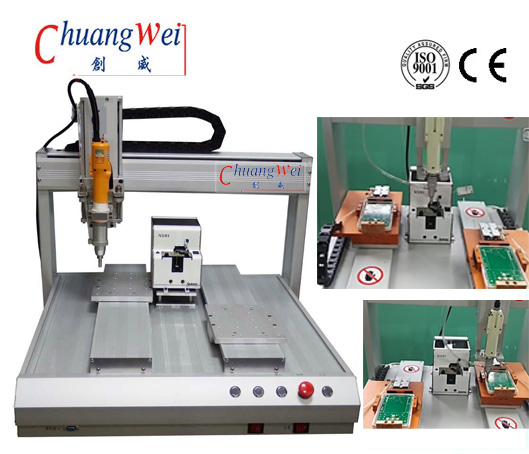

Robot Screw Tightening Machine-hread Inserts Screw Tightener,CWAS

Robot Screw Tightening Machine-hread Inserts Screw Tightener,CWAS

  • Product description: Robot Screw Tightening Machine-hread Inserts Screw Tightener,CWAS
  • INQUIRY

Robot Screw Tightening Machine-hread Inserts Screw Tightener,Features:



  • Reduce cost: Locking two kinds of screws at the same time ,the staff can operate quickly ,improve the efficiency
  • efficiency: Fastening two kinds of screws at the same time, higher efficiency, and 3600-4000pcs screw per hour,no waiting
  • More relax: single equipment for single worker, Just finished loading
  • Reliability: Automatic alarm system, work 20 hours more
  • Generality: Touch screen display programmable achieve more operations, Through a simple programming, can be put into production, convenient for production and management

China Screw Tightening Machine with 6 Axis,CWAS Function:

Have smart detection function, like missing screwing/screw stand out /screw loose…etc.;

Good flexibility, like universal fixture for different size mobile phone;

Good generality: adapt for M1.0-M4 by change in the screw guider

Perfect machine outline: small outline size is suit for different cell line configuration,

Auto mode don’t need operator and no waiting time

Robot Screw Tightening Machine-hread Inserts Screw Tightener,Specification:


Model

CWAS

Brand Name

Chuangwei

Certification

CE ISO

Type

Precision Screwdriver

No-Load Speed

500mm/sec

Air Pressure

0.4Mpa

Application Screw Hear

All Type

Usage

Lock ,Screw ,Automatic Screw Feeding

Power

220V 50HZ

Outline Size

600*840*640mm(L*W*H)      170*255*40mm(X*Y*Z)

Driver

Six axis step motor

Precision

±0.02mm

Control system

PLC+TP

Feeding

Absorption type

Program

Teaching Type

COM

USB

Voltage

220VAC,50HZ

Program Recording Mode

100set,4000 Points(USB SUPPORT COPY)

Weight

80KG

Payment Terms

T/T   L/C

Packaging

Plywood case

Display model

Teaching pendant LCD(320*240) or touch screen

Motor system

Japan precision micro-stepper motor

Drive mode

timing belt + screw rod +guide rail

Power

AC110V/220V 300W(internal switch)

I/O signal

12 Inputs/12 Outputs

Control

RS232

Edit model

Teach pendant

Working Environment Temperature

5-40

Working Environment Humidity

20-90%

Suite model

M1.2-M3.0


Applicable Subject:

Mobile phones, car electronic products, household appliances, power supply, instrument equipment, LED, computer keyboards, PAD, toys and so on.

Why us

1. Engineers available to service machinery oversea.

Engineers are available to be sent to foreign countries to do machinery training and offer technical support

2. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years’ experience on PCB separator machines and soldering machines. pub router

Our R&D team continuously upgrade the existing machines to meet the market development trend.

3. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge

4. Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively communicate with one another, foster enthusiasm and participate in decision-making. To be sea reachable by customers and provide prompt replies to solve their problems and create value for customers

Our mission

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success

Our Vision:

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
