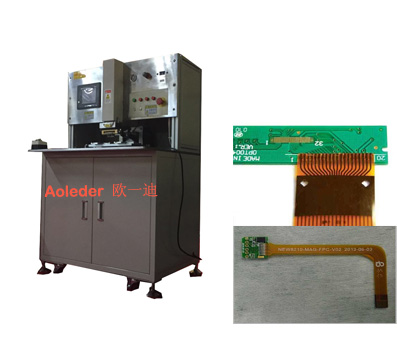

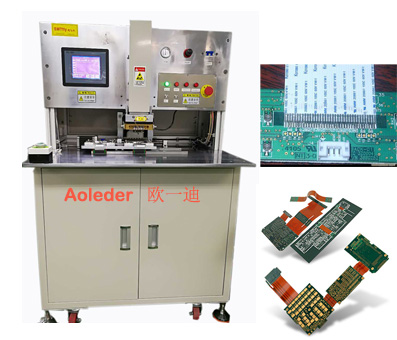

Solder-Hot Bar Bonder for FPC FFC HSC,CW-2A2P

Product description: Solder-Hot Bar Bonder for FPC FFC HSC,CW-2A2P
INQUIRY

Solder-Hot Bar Bonder for FPC FFC HSC,CW-2A2P Specification:

1. Customized based on the connector 2. Double jig welding 3. Double- desk working mode 4. Can achieve ultra-fine pitch welding 5.Applicable to welding the cable and connection of communicating machine	NO.	Subject	Parameters
	1	Machine size	L850×W650×H1320mm
	2	Working size	Max150x150mm
	3	weight	98KG
	4	working air pressure	0.5~0.80 Mpa
	5	power supply	AC220V±10％50HZ.2000W
	6	Lifting temperature setting	Five Section
	7	work environment	10~60℃，40％~95％
	8	Welding pressure	4~50N
	9	Welding pressure error	±1N
	10	Temperature setting	RT∽500℃,±2℃
	11	Heating rate	250℃/s
	12	Welding time	1-99.9S
	13	welding precision	Pitch 0.2mm
	14	Welding head size（M metal)	Max 50*3mm
	15	Welding head size（T metal)	Max 100*3mm
	16	Welding head flatness	±0.02mm
	17	Pin distance range	＞0.2mm
	18	Alignment mode	Artificial alignment
	19	Positioning fixture	2
	20	Way of discharge	Artificial pick and place
	21	Start mode	Pressed by hands
	22	Heating method	Pulse heating, the rise time is 1 ~ 2S
	23	Work Stage	Left and right automatic push and pull
	24	Platform control	Precision motor control, error <0.02mm

SMT Soldering-Hot Bar Bonding for FPC FFC HSC,CW-2A2P Function Module:

【Double welding head design】 Applicable to double-sided welding products 【Left and right platform design】 In the production, It weld with left and right cycle , saving time and improving efficiency 【The upper and lower welding heads are driven by the motor】 Up and down position is precise, the same accuracy when it repeats 【The left and right platform is driven by motor】 Left and right position is precise, the same accuracy when it repeats 【Touch screen programming】 Easy to understand and program, we can enter data location directly

Solder-Hot Bar Bonder for FPC FFC HSC,CW-2A2P Related Products Catalogue :

Desktop terminal welding machine CWPP-5A	Double-sided welding automatic tin feed machine CWPP-D5A	Terminal testing and shell filling machine (terminal welding supporting equipment)

Solder-Hot Bar Bonder for FPC FFC HSC,CW-2A2P Simple Introduction:

This device is designed for double - deck working mode of double welding head. The equipment adopts high density metal material, so the lifting temperature is fast and the service life is special. The equipment operation is easy to understand. It is special in welding connector and wire with single side and double sides.
