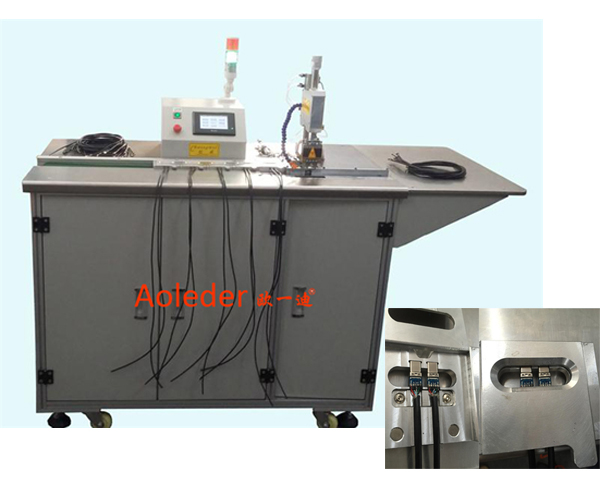

Product description: USB Wire Hot Bonding Machine,CWPDY2IN
USB Wire Hot Bonding Machine,CWPDY2IN Features: 1.On~line conveyor loading and landing automatically 2.Has alarm system, manual test & adjustment is available 3.Double side soldering at the same time 4.Advanced temp. controlling system, high precision temp & soldering time controlling 5.Stable temp. profit, high frequency inverter frequency, short power cycle. 6.LCD display for soldering temp. 7.Closed loop PID temperature control with visible LED display. 8.Three section of heating setting, the temperature rises quickly and steadily 9.20 groups of programs can be stored, using RRPROM to prevent data from missing.
USB Wire Hot Bonding Machine,CWPDY2IN Specification: Model: CWPDY2IN Power: 6*2 KW Power Supply: 220V 50Hz Inverter frequency: 4*2 KHz Load sustained rate: 20% Heating up and cooling down: Yes Temp. range: 50-600℃ Cooling mode: Air Max product size: 80mm Pressure range: 10-50N Temp. Control Precision: ±3% Thermocouple: E or K optional Thermode head size: 5~50mm Weight: 200kgs Dimension: 1600*700*1300mm
Our Service: # 1 day delivery # 24 hours fast response # Largest manufactory in South China # 100% responsible for quality
