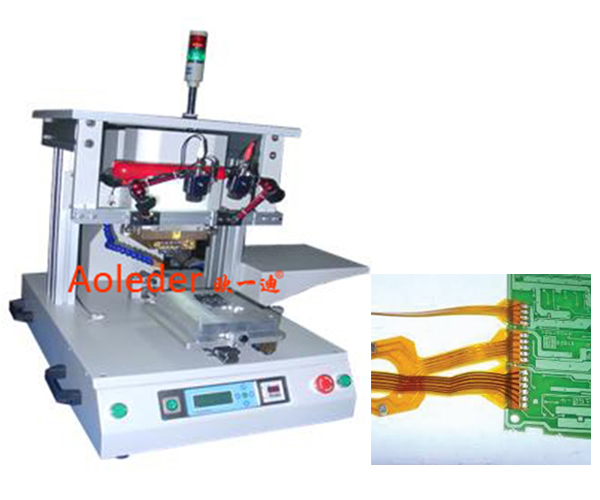

Assemble Soldering Robot Pulse Thermode Hot Bar Soldering for FPC ,CWPP-1A
Product description: Assemble Soldering Robot Pulse Thermode Hot Bar Soldering for FPC ,CWPP-1A
Assemble Soldering Robot Pulse Thermode Hot Bar Soldering for FPC ,CWPP-1AFeature: 1.Unique pulse heat technology provides fastest soldering head heating 2.Programmable soldering temperature, heat-up rate and time duration for a wide range of products. 3.Thermocouple is fixed in close proximity to the working surface & the thermode, thus providing accurate temperature feedback control 4.Closed Loop PID temperature control with clearly visible LED display 5.Soldering time can be programmable and is triggered by temperature 6.Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined 7.Programmable pressure switch with LCD display for precise force control 8.CCD camera system with magnification lens can be retrofitted for fine-pitch positioning
Assemble Soldering Robot Pulse Thermode Hot Bar Soldering for FPC ,CWPP-1A Specification: Size: 500mm X 750mm X 640mm Work Air Pressure: 200mm X 260mm Air pressing: 0.45~0.70Mpa Weight: 90Kg
Our Service: # 1 day delivery # 24 hours fast response # Largest manufactory in South China # 100% responsible for quality # 13 years experience
