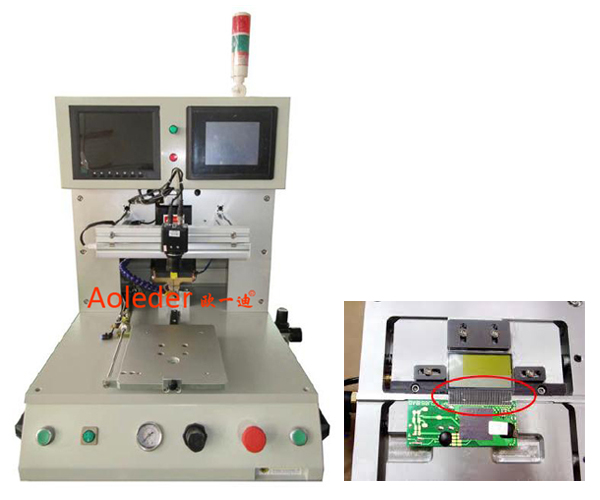

China CWPP-3A High Precision Hot Bar Soldering Machine Bonding for FPC/HSC to PCB
Product description: China CWPP-3A High Precision Hot Bar Soldering Machine Bonding for FPC/HSC to PCB
China CWPP-3A High Precision Hot Bar Soldering Machine Bonding for FPC/HSC to PCBFeature: 1. According to different products, optional temperature for your choice. 2. Unique material thermode head, ensure the average pressure 3. Has vacuum function, easier for adjustment and positioning. 4. NC temperature, clear and high precision 5. With digital pressure gauge, pressure range can be preset. 6. Microcomputer control, high accuracy and stable. 7. Programmable curve Including pre-heating and reflow soldering temperature. 8. Suitable for all kinds of high density TAB, TCP and pressure to FPC, FFC and PCB soldering pressure welding. 9. Precise PID control, phase angle replace pulse drive. 10. Less Libration, less noise, avoiding voltage fluctuate 11. Real-time display temperature curve and temperature data. 12. Touch screen input data, simplify the operation.
China CWPP-3A High Precision Hot Bar Soldering Machine Bonding for FPC/HSC to PCB Technical parameters： Machine size： 660×660×700mm Working area： Max 200*170mm Machine weight： 89Kg Working air pressure： 0.6-0.8Mpa Power supply： AC220V±10% 50HZ,2200W Temperature settings：Two Working environment：10-60℃，40%-95% Welding pressure： 1~20Kg Temperature settings： RT~500℃ tolerance ±5℃ Pressing time： 1~99.9s Welding precision： pitch 0.2mm Thermode head size： Max 60*3mm Fixture quantity: 1 Alignment mode： CCD + LCD Monitor Feeding mode： Manual Starting mode： Press two start buttom Heating mode： heating pulse rise time of 1-2 seconds Rotation Platform： Cylinder control，tolerance<0.02mm
SMT Bonding Machine，CWPP-3A Application： . For a variety of high density TAB, TCP crimping and FPC, FFC and PCB solder crimp.
Our Service: # 1 day delivery # 24 hours fast response # Largest manufactory in South China # 100% responsible for quality
