  • Hot Bar Soldering Solution,CWPDY

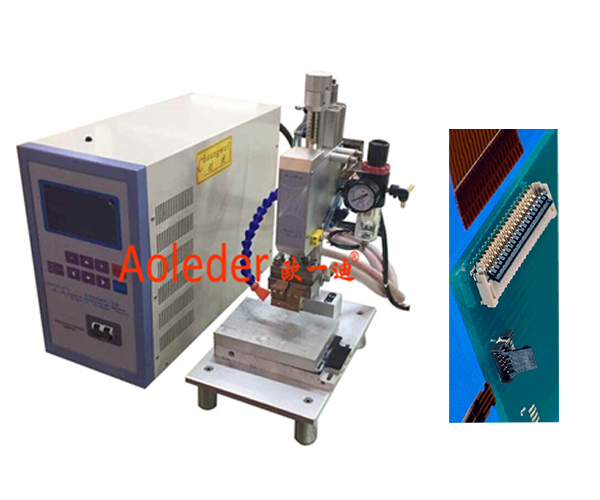

Hot Bar Soldering Solution,CWPDY

Hot Bar Soldering Solution,CWPDY

  • Product description: Hot Bar Soldering Solution,CWPDY
  • INQUIRY
Hot Bar Soldering Solution,CWPDY Feature:
1.Closed Loop PID temperature control with visible LED display
2.LCD display programmable pressure switch for precise force control
3.Each heating cycle is triggered by a real time pressure sensor
4.Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined
5.Parts registration is adjusted by micrometer and secured by vacuum lock

6.Could adjust pre-heating and reflow soldering temperature and soldering time


Hot Bar Soldering Solution,CWPDY Specification:

Working Area(mm):
200*260
Depression(pa):
0.45~0.70
Controller size(mm):
180*290*460
Weld head:
170*350*400
Input voltage(V):
380
Temperature setting(℃):
50~600
Temperature precision℃):
±2
Bonding time(s):
1~99
Bonding force(pa):
0.1~0.6:
Precision(pa):
0.05
