PCB Stand-Alone Routers Mahcine With Manual Loading/Unloading,CW-F04

Product description: PCB Stand-Alone Routers Mahcine With Manual Loading/Unloading,CW-F04
INQUIRY

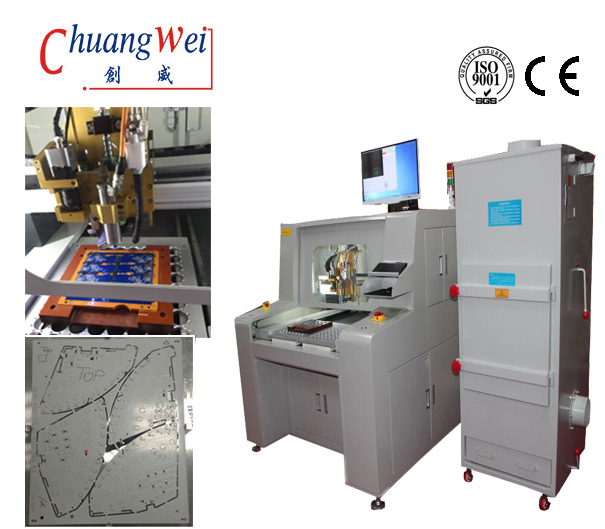

PCB Stand-Alone Routers Mahcine With Manual Loading/Unloading,CW-F04

Specification:

Model	CW-F04
Standard working area	320*320mm(Standard)
Power	220V, 4.2KW
Manipulator Repeatability	±0.02mm
Resolution	±0.01mm
Board Positioning	Dual workstation with nest fixture or pin fixture
Panel Location	Located by tooling holes or edges of PCB
Loading	Manual
Unloading	Manual
Panel Size	320*320mm(standard)
Panel Thickness	0.5-3.5mm
Spindle motor	0.5kW Morning Star Spindle
Dust filtration system	3KW Vacuum Cleaner
Vision system	High resolution CCD video camera
Programming	Vision assisted point to point manual teaching
Editing Function	Dry run vision assisted / test run mode
Machine weight	650kgs
Machine dimension	135012501450cm

PCB Stand-Alone Routers Mahcine With Manual Loading/Unloading,CW-F04

1. Hardware

SPINDLE Morning Star spindle and inverter
CCD:Sony 520 line industrial cameras
LENS:Computar EX2C
Screw:TBI Precision ground ball screw imports
Guide:HIWIN widening Imported linear guide rail
MOTOR:JiaBao LCF Series
I/O CONTRONL CARD: HFC PCI-9074
DRIVER CONTRONL CARD: HFC PCI-9074
I/O CARD:PCI-9074-64pcs/-38pcs
Static cleanup:STATIC-ST401A Series
Computer:RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface: AOC LCD17",Logitech mouse

2. software

Control system:Windows 7 Professional
Operation GUI:English Windows 7
Program edit:Inline
Vision system:CCD AOTU offset
Control system : F 1.0.2 version

3.Performance Parameters

Dimensions(W*D*H) : 1220mm*1450mm*1420mm

Weight : 550KG
Height offset : 60~110mm
Motor type : JiaBao series
Positioning repeatability : 0.001mm
Axis working area(max) : 650mm*500mm
PCB fixation : standard,specialization
PCB loading/unloading : manual

4.Why Choose Us?

1. Engineers available to service machinery oversea

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. Mature technique & forerunner to process makes high quality machinery

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines.

Our R&D team continuously upgrade the existing machines to meet the market development trend.

3.Effective customer service

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.

4.One year warranty for the machines except accessories

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.

We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

PCB Stand-Alone Routers Mahcine With Manual Loading/Unloading with CE
