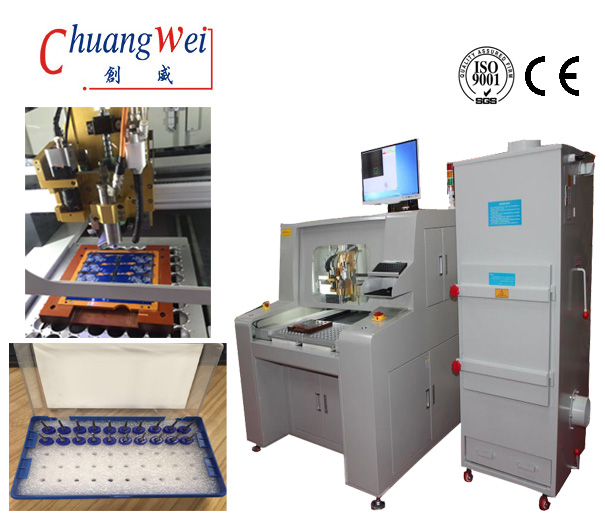

Pcb Cutting Machine/PCB Separator/LED Trip Separator/CNC Router PCB Depanelization,CW-F04 Features:

1. Smooth cutting finish only by router cutting .
2. There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand .
3. One-touch program changeover .
4. Able to cut liner and arc with router machine , diminish the restriction on PCB design .
5. Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .
6. Powerful Dust Collection minimized dust adhesion on PCB .
7. Developed high performance router bit that expanded bit life and relief littering .

8. Cut down PCB cost because need not making V-groove on PCB

Pcb Cutting Machine/PCB Separator/LED Trip Separator/CNC Router PCB Depanelization Specification:

Description:2-way Sliding Exchanger This work exchanger provides a simultaneously in-and-out working space to limit the idle time, which in turn reaches the utmost output value.

Route Duplication The user only needs to set two referent points to duplicate a same route in saving programming time.

Routing Bit Sectioning The user may set a designated distance, and have the routing bit shift-up or -down in order to make a new section of touting bit to cut boards for multiplying the life of the routing bit.

Friendly GUI Windows XP system and Graphical User Interface (GUI) is adopted, which enables the user to learn and use the program easily. A 10 x zoom-in image is shown on screen for setting all points.

Application:
