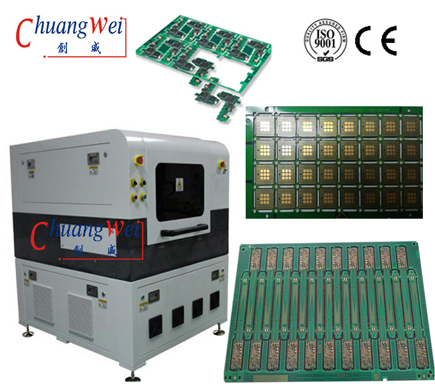

Laser Customizable Effective Working Field Laser Cutting Machine for Pcb Depaneling Machine Specification:

Laser Customizable Effective Working Field Laser Cutting Machine for Pcb Depaneling Machine Description:

PCB depaneling (singulation) laser machines and systems have been gaining popularity over recent years. Mechanical depanaling/singulation is done with routing, die cutting, and dicing saw methods. However, as the boards get smaller, thinner, flexible, and more sophisticated, those methods produce even more exaggerated mechanical stress to the parts. Large boards with heavy substrates absorb these stresses better, while these methods used on ever-shrinking and complex boards can result in breakage. This brings lower throughput, along with the added costs of tooling and waste removal associated with mechanical methods.

Increasingly, flexible circuits are found in the PCB industry, and they also present challenges to the old methods. Delicate systems reside on these boards and non-laser methods struggle to cut them without damaging the sensitive circuitry. A non-contact depaneling method is required and lasers provide a highly precise way of singulation without any risk of harming them, regardless of substrate.

Laser Customizable Effective Working Field Laser Cutting Machine for Pcb Depaneling Machine Features:

1. Neat and smooth edge, no burr or overflow;
2. More quick and easy, shorten the delivery time;
3. More quick and easy, shorten the delivery time
4. High quality ,no distortion,surface clean& uniformity;
5. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed;
6. Pre-camera vision product position registration and model check;
7. Coherent Avia NX UV laser with HurrySCAN head;
8. High capacity BOFA dust collecto;
9. User friendly Window based software;
10. PCB flexible product jig adjustable for different board size;
11. High resolution and accurate Z stage with auto-focus function;
12. Large area low friction front loading platform for sliding multiple product jigs;
13. Fully covered class 1 safety enclosure;
14. Able to do cutting and marking together;
15. Compact size.

Laser Customizable Effective Working Field Laser Cutting Machine for Pcb Depaneling Machine Dvantages:

1.High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.

2.Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;

3.Reduce energy consumption, Cost savings.

Cost-effective, fast cutting speed, stable performance

Laser Customizable Effective Working Field Laser Cutting Machine for Pcb Depaneling Machine,CWVC-5L

Laser PCB Depaneling Machine Application:

FPC and some relative materials;

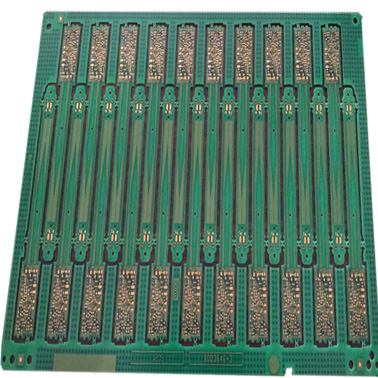

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;

Why us

1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

3..Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

4. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend
