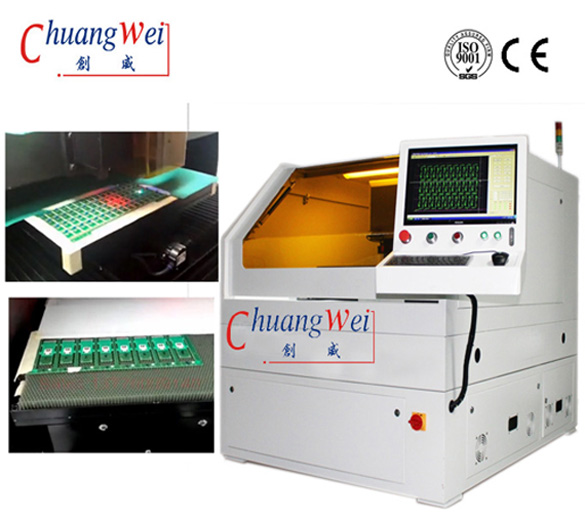

  • Auto Vision Positioning FPC CNC Laser Cutting Machine with CE- PCB Depaneling,CWVC-5S
Auto Vision Positioning FPC CNC Laser Cutting Machine with CE- PCB Depaneling,CWVC-5S

Auto Vision Positioning FPC CNC Laser Cutting Machine with CE- PCB Depaneling,CWVC-5S

  • Product description: Auto Vision Positioning FPC CNC Laser Cutting Machine with CE- PCB Depaneling,CWVC-5S
  • INQUIRY

Auto Vision Positioning FPC CNC Laser Cutting Machine with CE- PCB Depaneling,CWVC-5S

Auto Vision Positioning FPC CNC Laser Cutting Machine with CE- PCB Depaneling Specification:

Laser

Q-Switched diode-pumped all solid-state UV laser

Laser Wavelength

355nm

Laser Power

10W/12W/15W/17W@30KHz

Positioning Precision of Worktable of Linear Motor

±2μm

Repetition Precision of Worktable of Linear Motor

±1μm

Effective Working Field

460mmX460mm(Customizable)

Laser Scanning Speed

2500mm/s (max)

Galvanometer Working Field Per One Process

40mmх40mm

Auto Vision Positioning FPC CNC Laser Cutting Machine with CE- PCB Depaneling Description:

PCB depaneling (singulation) laser machines and systems have been gaining popularity over recent years. Mechanical depanaling/singulation is done with routing, die cutting, and dicing saw methods. However, as the boards get smaller, thinner, flexible, and more sophisticated, those methods produce even more exaggerated mechanical stress to the parts. Large boards with heavy substrates absorb these stresses better, while these methods used on ever-shrinking and complex boards can result in breakage. This brings lower throughput, along with the added costs of tooling and waste removal associated with mechanical methods.

Increasingly, flexible circuits are found in the PCB industry, and they also present challenges to the old methods. Delicate systems reside on these boards and non-laser methods struggle to cut them without damaging the sensitive circuitry. A non-contact depaneling method is required and lasers provide a highly precise way of singulation without any risk of harming them, regardless of substrate.

Auto Vision Positioning FPC CNC Laser Cutting Machine with CE- PCB Depaneling Features:

1. Neat and smooth edge, no burr or overflow

2. More quick and easy, shorten the delivery time;

4. High quality ,no distortion,surface clean& uniformity;

5. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed

Auto Vision Positioning FPC CNC Laser Cutting Machine with CE- PCB Depaneling Advantages:

· Auto vision positioning

· Cost saving – no consumables and die wear

· Able to cut odd, complex and micro shape section out of PCBs

· No mechanical stress on product

· Quick model change turnaround time

· Excellent cut finish

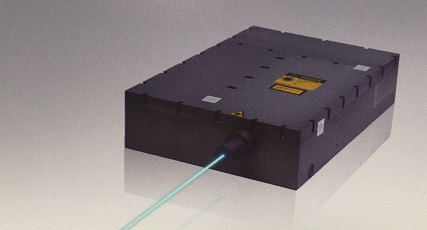

Laser Source:



FPC CNC Laser Cutting Machine with CE- PCB Depaneling,CWVC-5S Application:

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;
