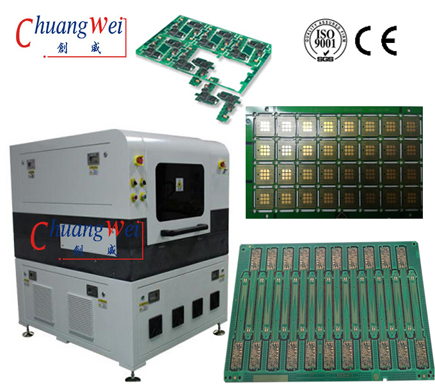

UV Laser System for PCB Separator,Cut PCB,PCB PCB Shear Cutter,CWVC-5L

Product description: UV Laser System for PCB Separator,Cut PCB,PCB PCB Shear Cutter,CWVC-5L
INQUIRY

Pcb Depaneling without Stress,UV Laser System for Flex Pcb Cutting,CWVC-5L Features:

Neat and smooth edge, no burr or overflow;
More quick and easy, shorten the delivery time;
More quick and easy, shorten the delivery time;
High quality ,no distortion,surface clean& uniformity;
Gathering the CNC tech,laser tech,software tech…High accuracy,High speed;
Pre-camera vision product position registration and model check;
Coherent Avia NX UV laser with HurrySCAN head;
High capacity BOFA dust collecto;
User friendly Window based software;
PCB flexible product jig adjustable for different board size;
High resolution and accurate Z stage with auto-focus function;
Large area low friction front loading platform for sliding multiple product jigs;
Fully covered class 1 safety enclosure;
Able to do cutting and marking together;
Compact size.

Advantages:

1.High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.

2.Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;

3.Reduce energy consumption, Cost savings.

Cost-effective, fast cutting speed, stable performance

UV Laser System for PCB Separator,Cut PCB,PCB PCB Shear Cutter,CWVC-5L Specification:

Laser class	1
Max. working area (X x Y x Z)	300 mm x 300 mm x 11 mm
Max. recognition area (X x Y)	300 mm x 300 mm
Max. material size (X x Y)	350 mm x 350 mm
Data input formats	Gerber, X-Gerber, DXF, HPGL,
Max. structuring speed	Depends on application
Positioning accuracy	± 25 μm (1 Mil)
Diameter of focused laser beam	20 μm (0.8 Mil)
Laser wavelength	355 nm
System dimensions (W x H x D)	1000mm940mm 1520 mm
Weight	~ 450 kg (990 lbs)
Power supply	230 VAC, 50-60 Hz, 3 kVA
Cooling	Air-cooled (internal water-air cooling)
Ambient temperature	22 °C ± 2 °C @ ± 25 μm / 22 °C ± 6 °C @ ± 50 μm (71.6 °F ± 3.6 °F @ 1 Mil / 71.6 °F ± 10.8 °F @ 2 Mil)
Humidity	< 60 % (non-condensing)
Required accessoires	Exhaust unit

Working principle :

humidity sensor ( humidity and temperature signal ) → Microcomputer ( CPU Central Processing Unit ) → Heaters ( PTC heating module polymer material heating ) → Smart shape memory alloy ( alloy shape with temperature change ) → Balance spring ( general balance spring with alloy )

Laser PCB Depaneling Machine Application:

FPC and some relative materials;

FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting;
