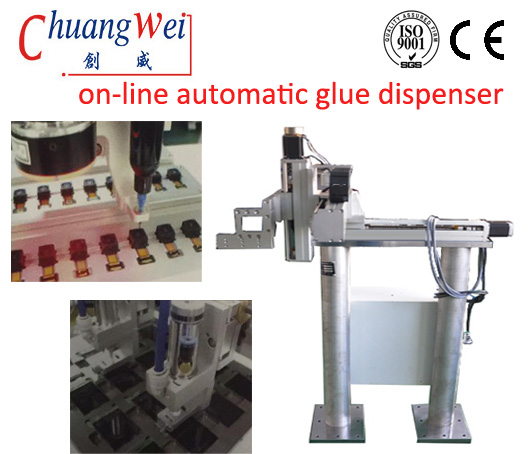

Cantilever Type three Axis on-line Automatic PCB Dispensing Machine,CW-F

Product description: Cantilever Type three Axis on-line Automatic Dispensing Machine,CW-F
INQUIRY

Cantilever Type three Axis on-line Automatic Dispensing Machine,CW-F:

1. cantilever three axis online automatic dispensing machine, with different glue system, you can play AB glue, silicone, UV glue, yellow glue, AB glue and other glue;

2. cantilever type three axis on-line automatic glue dispenser is applied in assembly line, which can greatly improve the production capacity of dispensing;

3. cantilever type three axle on-line automatic glue dispenser is applied to assembly line, and needs to be equipped with stopping device;

4. cantilever type three axle online automatic dispensing machine, which can be configured with more dispensing valves, dispensing speed, high efficiency.

Automatic Glue Dispensing Machine for SMT PCB Assembly Parameters：

Parameters	Model	Parameter values

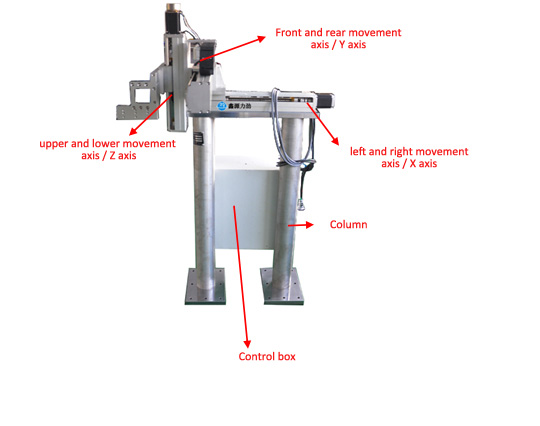

Effective stroke of XYZ Axis	CW-331	300300100
	CW-441	400400100
	CW-551	500500100
	CW-661	600600100
	Other	Other sizes can be made to order
Movement mode	Step motor + belt, stepping motor + screw rod, servo motor + screw rod
Power Supply	110V-220V
Control box	1
Repeat ability positioning accuracy	+ 0.02mm
XYZ Axis motion speed	500mm per second
Machine material	Made of aluminum alloy
Use temperature as	5-40 ºC
Field humidity	20%-89%
