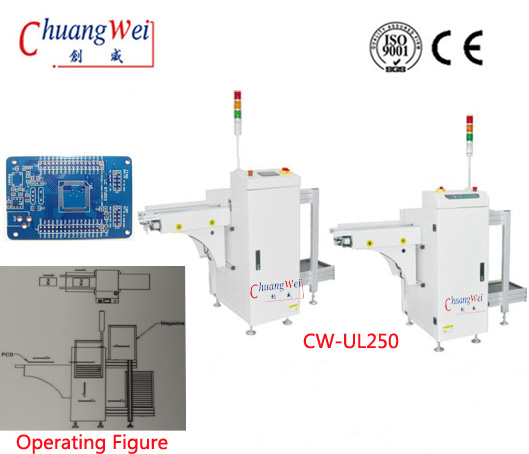

PCB Loader/PCB Unloader in SMT Line,CW-UL250

Product description: PCB Loader/PCB Unloader in SMT Line,CW-UL250
INQUIRY

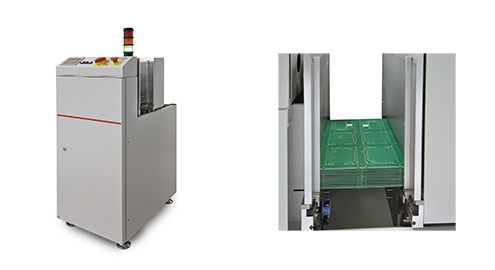

PCB Loader/PCB Unloader in SMT Line,CW-UL250,Product Instruction:

※PLC control system, Working is stably and reliably;
※Easy to operate touch LED buttons or touch screen control interface;
※The pneumatic clamps of top and bottom three point provided for the magazine alignment;
※ Electric pushing board design can ensure the PCB is unbroken;

※ Machine always fault monitoring;
※ The dual track design is small footprint;
※ Solid and stable design;
※ SMEMA port is compatible.

PCB Loader/PCB Unloader in SMT Line,CW-UL250,Technical Parameter:

Function	This equipment is used to collect PCBs into magazine at the end of SMT production line
PCB loading time	Approx 6seconds
Magazine change-over time	Approx 30 seconds
Power supply	100-230V AC (customized), single phase, MAX 300V/A
Air pressure	4-6 bar, MAX 10L/minute
Transport height	900±20mm (or customized)
Transport direction	Left to right / right to left(optional)
PCB thickness	Min 0.6mm
Magazine number	transport up: 1pcs, transport down: 1pcs,(or customized)
Step pitches select	1-4(10mm step pitches)
