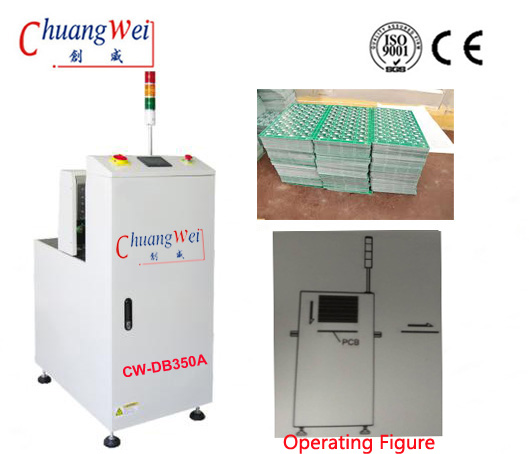

Loading-Robotic On-line PCB Loader,CW-DB350A

Product description: Loading-Robotic On-line PCB Loader,CW-DB350A
INQUIRY

Loading-Robotic On-line PCB Loader,CW-DB350A Technical Parameter:

Function	This equipment is used for the operation of bare PCB loading in the line
Max PCB’s capacity	300pcs (0.6mm thickness PCB)
cycling time	Approx 8 seconds
Power supply	100-230V AC (customized), single phase
Power load	MAX 150 VA
Air pressure	4-6 bar
Air volume	MAX 20L/minute
Transport height	900±20mm (or customized)
Transport direction	Left to right/right to left(optional)
PCB thickness	MIN 0.6mm

Loading-Robotic On-line PCB Loader,CW-DB350A Product Instruction:

※Stable and reliable integrated control system
※Easy to operate touch screen control interface
※Uninterrupted loading
※ Machine always fault monitoring
※ optional pass working mode
※ Smooth and parallel width adjustment (lead screw)
※ Small machine footprint

※ SMEMA port is compatible

Loading-Robotic On-line PCB Loader,CW-DB350A Specification:
