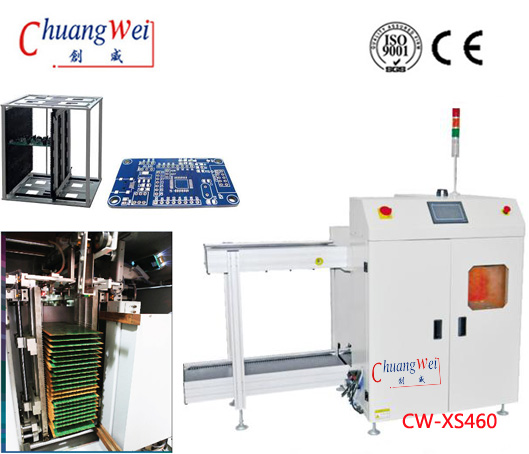

DE stacker/Push-Up stacker,Vacuum Bare Board loader,CW-XS460

Product description: DE stacker/Push-Up stacker,Vacuum Bare Board loader,CW-XS460
INQUIRY

DE stacker/Push-Up stacker,Vacuum Bare Board loader,CW-XS460 Features:

※PLC control system, working is stably and reliably,
※Easy to operate touch screen control interface,
※Enclosed design ensure the highest security level,

※ Top safety cover can be opened, the handling of the machine easy to maintain the hardware,

※ Agility sucker design, position adjustable,

※ The solid balance device of adjusting the width (Hand control screw adjustment),

※ Small machine footprint,

※Machine always fault monitoring,

※Optional pass working mode,
※ SMEMA port is compatible.

PCB Loader,Pcba Loading with PLC System,Technical Parameter:

Function	This equipment is used for the operation of bare PCB loading in the line
PCB loading time	Approx 6 seconds
Magazine change-over time	Approx 30 seconds
Power supply	100-230V AC (customized ), single phase, MAX 300V/A
Air pressure	4-6 bar, MAX 30L/minute
Transport height	900±20mm (or customized)
Transport direction	Left to right / right to left(optional)
PCB thickness	Min 0.6mm
Magazine number	transport up: 1pcs, transport down: 2pcs,(or customized)
Step pitches select	Step pitches select
