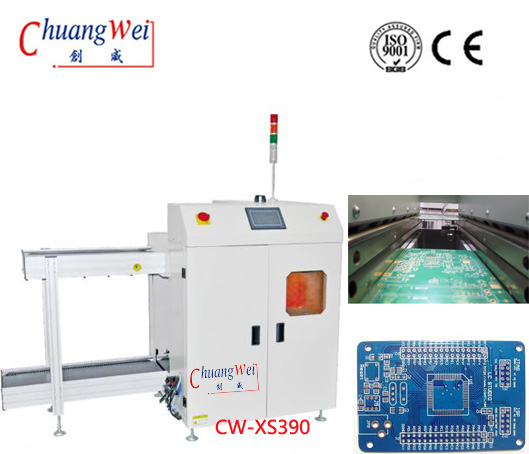

PCB Process Handing Loader,Smt PCB Magazine Loader,CW-XS390

Product description: PCB Process Handing Loader,Smt PCB Magazine Loader,CW-XS390
INQUIRY

PCB Process Handing Loader,Smt PCB Magazine Loader,CW-XS390 Parameter:

Function	This equipment is used for the operation of bare PCB loading in the line
PCB loading time	Approx 6 seconds
Magazine change-over time	Approx 30 seconds
Power supply	100-230V AC (customized ), single phase, MAX 300V/A
Air pressure	4-6 bar, MAX 30L/minute
Transport height	900±20mm (or customized)
Transport direction	Left to right / right to left(optional)
PCB thickness	Min 0.6mm
Magazine number	transport up: 1pcs, transport down: 2pcs,(or customized)
Step pitches select	Step pitches select

PCB Process Handing Loader,Smt PCB Magazine Loader,CW-XS390 Specification:

Model	CW-XS390
PCB size (L×W)～(L×W)	(50x50)～(530x390)
Machine size (L×W×H)	2600×1250×1200
Magazine size (L×W×H)	535×460×570
weight	260kg

PCB Process Handing Loader,Smt PCB Magazine Loader,CW-XS390 Features:

※PLC control system, working is stably and reliably;
※Easy to operate touch screen control interface;
※Enclosed design ensure the highest security level;

※ Top safety cover can be opened, the handling of the machine easy to maintain the hardware;

※ Agility sucker design, position adjustable;

※ The solid balance device of adjusting the width (Hand control screw adjustment);

※ Small machine footprint;

※Machine always fault monitoring;

※Optional pass working mode;
※ SMEMA port is compatible.
