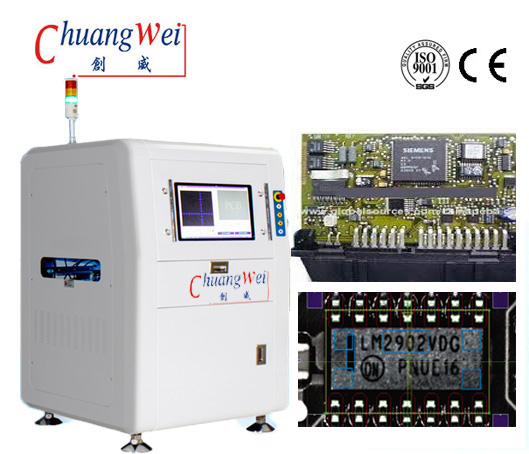

  • Product description: PCB Optical Inspection‎ - LED AOI System,CW-A586​

PCB Optical Inspection‎ - LED AOI System,CW-A586 Specification:




Recognition system


Using multiple algorithms synthetically such as WIDM Color image contrast technology color extracting technology,similarity,two-value handing technology,OCR/OCV etc.


Distal and high speed color CCD camera:20um(15um/12um/10um for option)


Ring tower structure, high intensity RGB flash lamp-house


Standard FOV:20*20mm,the maximum FOV:40*40mm

Image process


0201 Cgip


Per-image time


Inspection Items

Component Defects

Missing , Misaligned ,overflow ,insufficient ,pasting open, stain

Solder Defects

Missing,misaligned,skewed,tombstone,billboard,overturned,reversed polarity,wrong,damaged

Inspection items

01005&0.3mm pitch()15um

Machine system

PCB conveyor

PCB size

PCB thickness

PCB warp tolerance

Component clearance

Machine system

X,Y platform


AC server, camera moves in the directions of X/Y



Moving Speed


Soft system

Operation system

Microsoft Windows XP professional




Set template images real time, count data and error gate value automatically , WIDM ,study ok template, input CAD date, Have the powerful function of feedback the inspect data and template library


Graphic programming, Chinese English




NG adaptable, check and correct PCBA defects at repair station


CPU:intel dual-core,Memory:4G,harddisk:500G


Air supply


Machine Dimensions




Power Supply

AC220V,10%,single phase 5A 50/60HZ,power consumption 1000W

PCB Optical Inspection‎ - LED AOI System,CW-A586,Features:

1. Multiple-Function

Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality, Check component before reflow soldering, check PCBA quality after reflow soldering, and DIP after wave soldering.

2. Simple Interface

Simple software interface accord with daily and effective operation,

The work guide, makes the equipment to maintain consistently,

The safe is comprehensive and nimble,

The Lowest training request.

3. Option and customized

Portable tracking doors design, easier for maintenance;

With overspecialization it can meet different demands;

The machine can work with OK/NG loader, make the seamless connection of on-line testing,PCBreceiving and repairing;

With the application of off-line programming and offline debugging ,m-acing the equipment with best value;

Various algorithms applications and combination, make the application of software is more flexible;

The new algorithm OCR and short test, meet the request of quality ins-software is more flexible;

With high intellectualized control system, it can control the quality and give feedback in the first time;

Fully meet the requirements of lead-free process.
