2017 Global Automatic Optical Inspection for PCB Market,CW-B586

Product description: 2017 Global Automatic Optical Inspection for PCB Market,CW-B586
INQUIRY

2017 Global Automatic Optical Inspection for PCB Market,CW-B586:

2017 Global Automatic Optical Inspection for PCB Market,CW-586 Specification:

Category	Item				Specification
Recognition system	Inspection				Using multiple algorithms synthetically such as WIDM Color image contrast technology color extracting technology,similarity,two-value handing technology,OCR/OCV etc.
	Camera				Distal and high speed color CCD camera:20um(15um/12um/10um for option)
	Lamp-house				Ring tower structure, high intensity RGB flash lamp-house
	FOV				Standard FOV:2020mm,the maximum FOV:4040mm
	Image process Speed	0201 CHIP			<9ms
		Per-image time			<150ms
	Inspection Items	Component Defects			Missing , Misaligned ,overflow ,insufficient ,pasting open, stain
		Solder Defects			Missing,misaligned,skewed,tombstone,billboard,overturned,reversed polarity,wrong,damaged
	Inspection items				01005&0.3mm pitch(15um)
Machine system	PCB conveyor				Left to right(Optional, right to left) PCB fixing: bottom-up, PCB warp correction. Automatic PCB loading and unloading, Adjustable clearance, Conforming SMEMA standard. Orbit clearance: 900±20mm
	PCB size				50×50mm - 510×460mm Can make bigger size according to clients’ demands
	PCB thickness				0.3mm – 3.0mm
	PCB warp tolerance				<2mm
	Component clearance				TOP≤25mm，Bottom≤30mm
Machine system	X,Y platform		Driver		AC server, camera moves in the directions of X/Y
			Orientation		<10um
			Moving Speed		50mm/s
Soft system	Operation system				Microsoft Windows XP professional
	Controlling Recognizing			Characteristics	Set template images real time, count data and error gate value automatically , WIDM ,study ok template, input CAD date, Have the powerful function of feedback the inspect data and template library
				Operation	Graphic programming, Chinese English
				Quality	10000 COMPONET/PCBA
Network	NG adaptable, check and correct PCBA defects at repair station
	Computer					CPU:Intel dual-core,Memory:4G,harddisk:500G
	DISPLAY					22inch TFT
Others	Air supply					4-6bar
	Machine Dimensions					104cm×110cm×155cm
	Weight					580KG
	Power Supply					AC220V,10%,single phase 5A 50/60HZ,power consumption 1000W

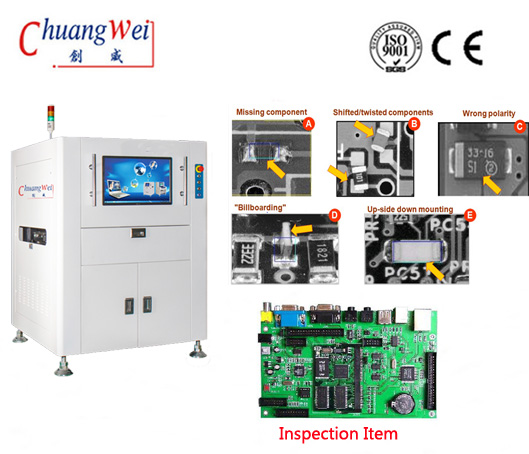

2017 Global Automatic Optical Inspection for PCB Market,CW-B586 Feature:

1. Multiple-Function

Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality, Check component before reflow soldering, check PCBA quality after reflow soldering, and DIP after wave soldering.

2. Simple Interface

Simple software interface accord with daily and effective operation,

The work guide, makes the equipment to maintain consistently,

The safe is comprehensive and nimble,

The Lowest training request.

3. Option and customized

Portable tracking doors design, easier for maintenance,

With overspecialization it can meet different demands,

The machine can work with OK/NG loader, make the seamless connection of on-line testing,PCB receiving and repairing,

With the application of off-line programming and offline debugging ,m-acing the equipment with best value,

Various algorithms applications and combination, make the application of software is more flexible,

The new algorithm OCR and short test, meet the request of quality ins-software is more flexible,

With high intellectualized control system, it can control the quality and give feedback in the first time,

Fully meet the requirements of lead-free process.
