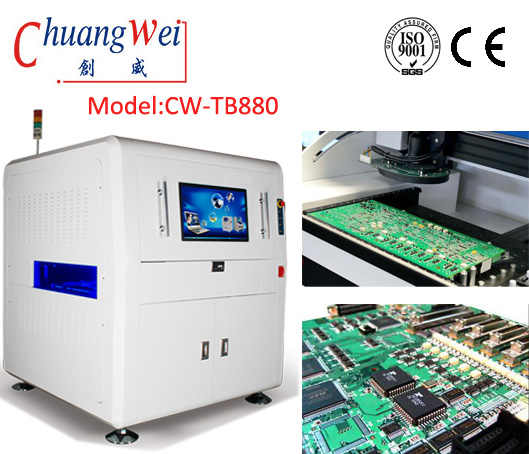

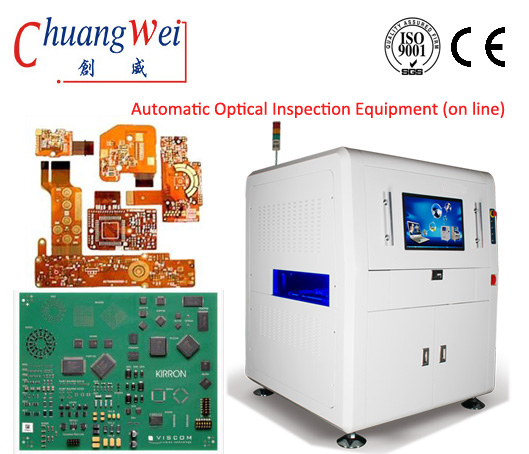

In Circuit Test,PCB Testing,Automated Optical Inspection,CW-TB880

Product description: In Circuit Test,PCB Testing,Automated Optical Inspection,CW-TB880
INQUIRY

In Circuit Test,PCB Testing,Automated Optical Inspection,CW-TB880 Specifications:

Category	Item			Specification
Visual identity system	Inspection method			According to the difference in weight imaging data analysis technology, color image contrast, color extraction analysis, similarity, binarization, OCR/OCV, solder ball detection, multi pin analysis algorithm
	Video camera			Full digital high-speed color camera, 15 million pixel resolution: 20 microns, /15 microns, /10 microns optional

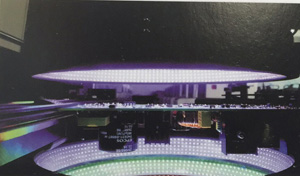

	light source			Ring shaped tower structure, super bright red green blue LED strobe light
	FOV			40.96mm * 40.96mm
	Image Processing speed	0201 component		<6.5ms
		Picture processing time		<200ms
	Testing content	Solder paste printing		Whether there is any deviation, less tin, tin, broken circuit, pollution
		Part defects		Missing parts, offset, skew, a monument and side, turn pieces, reverse polarity, wrong parts, damage
		Solder joint defect		Tin, tin less, tin, copper and other pollution (in line with RoHS lead-free solder test requirements)
	Minimum element and spacing can be detected			01005& 0.3mm pitch
Mechanical system	PCB transmission system			substrate fixed mode: bottom-up fixed, thimble function can correct large plate bending. Automatic access plate and automatic width adjustment system comply with SMEMA standard. Track height 900 + 20mm
	PCB size			50 x 50mm~510 * 460mm (larger size can be customized according to customer's requirement)
	PCB thickness / weight			0.5mm - 3.0mm/3kg
	PCB warp age			<2mm (fixture for correction of deformation)
	Part height			Top = 30mm, Bottom = 35mm (special requirements can be customized)
	Minimum parts			010015chip
	X,Y Platform		Driver	AC servo motor system, Camera move in x/y direction (PCBA fixed, it is good for solder paste printing and post patch inspection)
			Positioning accuracy	<10um
			Moving speed	700mm/s
Software system	operating system			Microsoft, Windows7, X64
	Identification control system		Characteristic	establish standard image in real time, automatically calculate data and error threshold. Weight imaging data difference analysis technology, learning Ok samples, CAD import, test data, statistical feedback, standard component library function
			Operation interface	Graphical programming of the interface, what you see and what you get. Chinese / English
	Networking			capabilities can be networked with NG terminals and can be checked at REPAIR STATION for maintenance of PCBA errors
Control System	Computer host of control system			Industrial control computer, Intel quad core, CPU, 16G memory, 2TB hard disk
	Display output			24 inch LCD widescreen display
	Network communications support			TCP/IP and Microsoft network systems
	Software central control			supports the central data control, and can remotely determine the test information of multiple devices.
Others	Gas source			0.5MPa, 40cm³/min
	Mechanical dimension			131cm(L)129cm(W)169cm(H) (height including foot, not signal light, subject to actual size)
	Weight			1250Kg
	Power supply			AC 220V10%, frequency 50/60Hz, rated power 1200W, comes with UPS uninterrupted power supply
	Use ambient temperature			10-40 degrees, humidity 30-80%RH

In Circuit Test,PCB Testing,Automated Optical Inspection,CW-TB880 Features：

a. 15 Megapixels high speed Industrial camera 7 high resolution lens,to ensure the efficiency and effect of image capture.

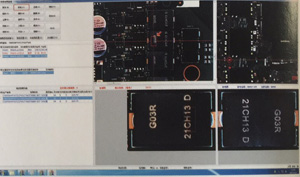

b. Graphic programming,the image information generated by the software is what you see, it’s easy to leaning how to programming.

c. The camera can automatically identify the bar code on both side of the PCB and make the corresponding information storage,easy to save and trace the product information,

d. SPC can be carried out which can provide data support for the improvement of quality and process improvement.

e. The machines can real-time monitoring the production line and support offline programming and offline debugging.

f. The software can central control and manage all the AOI machines in the workshop,remote comprehensive review all the testing information.

g. Can concentrated collect the inspection information from all the AOI in the production line, to facilitate the comprehensive management of the whole workshop.

In Circuit Test,PCB Testing,Automated Optical Inspection,CW-TB880 Application:

This function used before mounting to inspect if there are insufficient solder, missing ball,solder bridge and so on

Through the intelligent camera bar code recognition system,automatic read the bar code on the TOP side or BOT side,the bar code information can be selected according to requirements and can be shared,and the data maintenance is more convenient.
