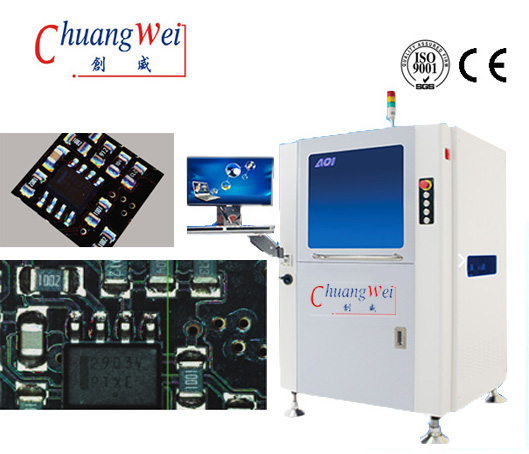

CW-S810 Inline Automatic Optical Inspection in Tools & Machines Feature:

Vector analysis algorithm, integrated variety of software algorithms to achieve the best inspection capability

The entire PCB match capability can detec extra parts at any location

Germany imported 5.0 MP industry cameras

The mew light source design, effectively eliminated the NG parts

Offline programming

Import control system to ensure high-precision equipment operation

The equipment can communicate directly with the NG buffer device and other equipment through the communicate protocol

Central server mode that gathers information from all the test machines to facilitate the integrated management of production, multiple machines need only one operator

2. Various vector image algorithms to get the best inspection capability

The vector image algorithms include logic operation ,distance of luminance boundary, chip tracing,OCR/OCB Luminance/color template matching, color distance, color distance, color extraction (RGB&HSV),VALUE-range of luminance offset of luminance, the minimum variation span of luminace,etc……More than 30 Kinds of the most advanced algorithms

3. Germany imported 5.0 MP Industry cameras

Wight a high-color reproduction, collocation a high-resolution telecentric lens, high NG identification, provide high-definition image output the AOI

4. Control system

All major components are used internationally renowned brands, in the premise of ensuring the stability and accuracy of the movement equipment with high service life and low failure rate.

5. The entire PCB match capability can detect extra part at any location

The entire PCB match function

High frame rate industrial cameras with telecentric lens

High-speed dynamic image acquisition can acquire hundreds of images per second, combined with the software entire board matching algorithm, can be used detect extra parts,foreigh matter, scratches and other information on the PCB

6. Multi machines one operator, intelligent communication

Central server mode that gathers information from all the test machines to facilitate the integrated management of production, multiple machines need only one operator

CW-S810 Inline Automatic Optical Inspection in Tools & Machines Specification:

CW-S810 Inline Automatic Optical Inspection in Tools & Machines with CE

Why us：

1. Engineers available to service machinery oversea.

Engineers are available to be sent to foreign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

3..Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively communicate with one another, foster enthusiasm and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

4. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 13 years experience on PCB separator machines and soldering machines. pcb router machine.

Our R&D team continuously upgrade the existing machines to meet the market development trend.
