  • PLC+TP Control Assembly Screw Tightening Supplier China,CWLS-1B

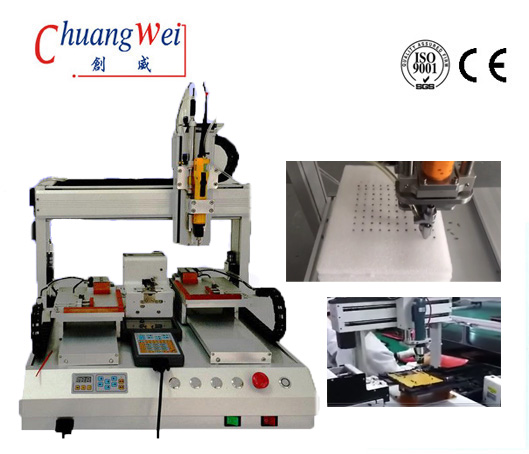

PLC+TP Control Assembly Screw Tightening Supplier China,CWLS-1B

PLC+TP Control Assembly Screw Tightening Supplier China,CWLS-1B

  • Product description: Camera Assembly Screw Tightening Supplier China,CWLS-1B
  • INQUIRY

PLC+TP Control Assembly Screw Tightening Supplier China Specification:

Model

CWLS-1B

Brand Name

Chuangwei

Certification

CE ISO

Working Range

500mm*500mm*100mm(x*y*z)

Drive Mode

3 axis driver

Position Accuracy

±0.02MM

Control System

PLC+TP

Screw Feeding

Absorption  type

Operation Method

By programming

Working Speed

Min<1.2S

Memory Size

999groups

COM

USB

Voltage

220VAC,50HZ

Air Pressure

0.4Mpa

Screws Scope

M2.0-M5.0

Power

220V/50V

Screw Materials

Iron Copper Stainless Steel Etc.

Warranty

Free of charge one year

Packaging

Each set be packed in plywood case

Payment Terms

T/T,L/C


PLC+TP Control Assembly Screw Tightening Supplier China,CWLS-1B Feature:

Auto-intelligent detection for screw loose, screw missing,screw unstable.K576

Automatic feeding and lock screws, any screw hole point and location data can be stored in the system at any time.

Excellent commonality and easy replace Screw M2.0—M5.0

Using X,Y,Z axis operation movement system control.

Camera Assembly Screw Tightening Supplier China,CWLS-1B Application:

Notebook computers, glasses, mobile phones, LCD monitors watches, integrated board, Sound box, Camera, Toys, small appliance Etc.



Our Sale Network:


Why Us

1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support

2. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router

Our R&D team continuously upgrade the existing machines to meet the market development trend.

3. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge

4. Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

Our mission

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success

Our Vision:

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Picture of the Feedback of Client's & CE Certication:
