Automatic Unloading System for PCB & PWB,CW-UL250L

Product description: Automatic Unloading System for PCB & PWB,CW-UL250L
INQUIRY

Automatic Unloading System for PCB & PWB,CW-UL250L Technical Parameter:

Function	This equipment is used to collect PCBs into magazine at the end of SMT production line
PCB loading time	Approx 6seconds
Magazine change-over time	Approx 30 seconds
Power supply	100-230V AC (customized), single phase, MAX 300V/A
Air pressure	4-6 bar, MAX 10L/minute
Transport height	900±20mm (or customized)
Transport direction	Left to right / right to left(optional)
PCB thickness	Min 0.6mm
Magazine number	transport up: 1pcs, transport down: 1pcs,(or customized)
Step pitches select	1-4(10mm step pitches)

Automatic Unloading System for PCB & PWB,CW-UL250L Specification:

Model No	CW-UL250L
PCB size (L×W)～(L×W)	(50x50)～(350x250)
Machine size (L×W×H)	1370×750×1200
Magazine size (L×W×H)	355×320×563
weight	100kg

Automatic Unloading System for PCB & PWB,CW-UL250L Instruction:

※Stable and reliable integrated control system;
※Easy to operate touch LED buttons or touch screen control interface;
※The pneumatic clamps of top and bottom three point provided for the magazine alignment;
※ Electric pushing board design can ensure the PCB is unbroken;
※ Machine always fault monitoring;
※ Right Angle small footprint design;

※ Solid and stable design;
※ SMEMA port is compatible.

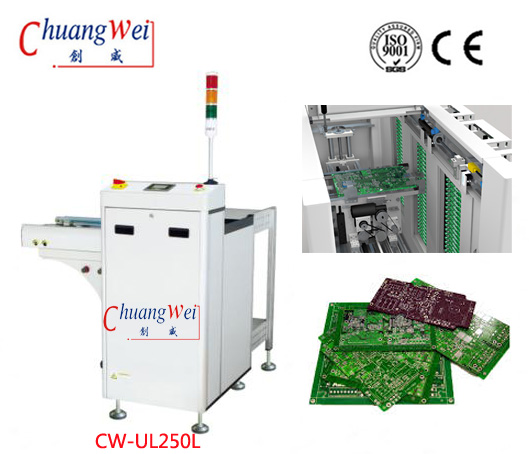

Sample of Automatic Unloading System for PCB & PWB,CW-UL250L:
