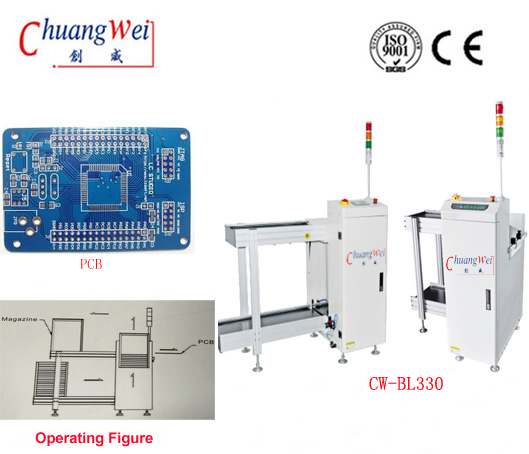

Fully Automated SMT Loader,CW-BL330

Product description: Fully Automated SMT Loader,CW-BL330
INQUIRY

Fully Automated SMT Loader,CW-BL330 Specification:

Model	CW-BL330
PCB size (L×W)～(L×W)	(50x50)～(455x330)
Machine size (L×W×H)	1550×830×1200
Magazine size (L×W×H)	460×400×563
weight	135kg

Fully Automated SMT Loader,CW-BL330 Product Instruction:

※Stable and reliable integrated control system,
※Easy to operate touch LED buttons or touch screen control interface,
※The pneumatic clamps of top and bottom three point provided for the magazine alignment,
※ Electric pushing board design can ensure the PCB is unbroken,

※ Machine always fault monitoring,
※ The dual track design is small footprint,
※ Solid and stable design,
※ SMEMA port is compatible.

Fully Automated SMT Loader,CW-BL330 Technical Parameter:

Function	This equipment is used for the operation of PCB loading in the line
PCB loading time	Approx 6 seconds
Magazine change-over time	Approx 30 seconds
Power supply	100-230V AC (customized), single phase, MAX 300V/A
Air pressure	4-6 bar, MAX 10L/minute
Transport height	900±20mm (or customized)
Transport direction	Left to right / right to left(optional)
PCB thickness	Min 0.6mm
Magazine number	transport up: 1pcs, transport down: 1pcs,(or customized)
Step pitches select	1-4(10mm step pitches)
