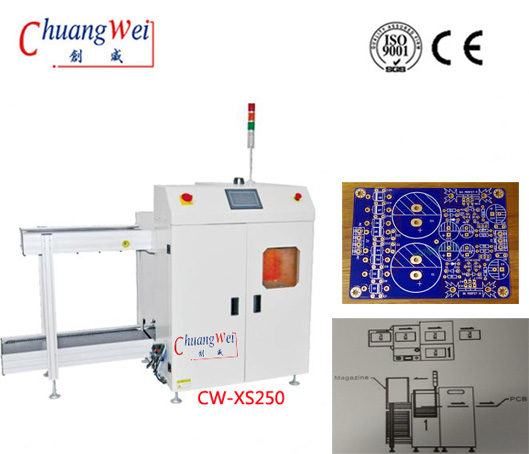

Professional CW-XS250 Automatic Sucking Loader

Product description: Professional CW-XS250 Automatic Sucking Loader
INQUIRY

Professional CW-XS250 Automatic Sucking Loader Specification:

Model No	CW-XS250
PCB size (L×W)～(L×W)	(50x50)～(350x250)
Machine size (L×W×H)	1900×850×1200
Magazine size (L×W×H)	355×320×563
weight	180kg

Professional CW-XS250 Automatic Sucking Loader Product Instruction:

※PLC control system, working is stably and reliably;
※Easy to operate touch screen control interface;
※Enclosed design ensure the highest security level;

※ Top safety cover can be opened, the handling of the machine easy to maintain the hardware;

※ Agility sucker design, position adjustable;

※ The solid balance device of adjusting the width (Hand control screw adjustment);

※ Small machine footprint;

※Machine always fault monitoring;

※Optional pass working mode;
※ SMEMA port is compatible.

Professional CW-XS250 Automatic Sucking Loader Technical Parameter:

Function	This equipment is used for the operation of bare PCB loading in the line
PCB loading time	Approx 6 seconds
Magazine change-over time	Approx 30 seconds
Power supply	100-230V AC (customized ), single phase, MAX 300V/A
Air pressure	4-6 bar, MAX 30L/minute
Transport height	900±20mm (or customized)
Transport direction	Left to right / right to left(optional)
PCB thickness	Min 0.6mm
Magazine number	transport up: 1pcs, transport down: 2pcs,(or customized)
Step pitches select	Step pitches select
