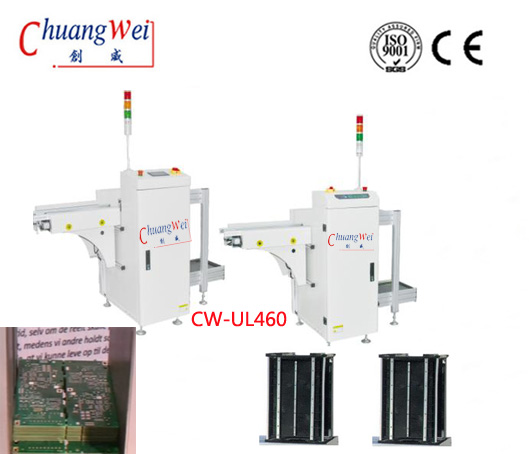

Online PCB Magazine Unloaded For Assembly,CW-UL460

Product description: Online PCB Magazine Unloaded For Assembly,CW-UL460
INQUIRY

Online PCB Magazine Unloaded For Assembly,CW-UL460 Product Instruction:

※Stable and reliable integrated control system,
※Easy to operate touch LED buttons or touch screen control interface,
※The pneumatic clamps of top and bottom three point provided for the magazine alignment,
※ Electric pushing board design can ensure the PCB is unbroken,

※ Machine always fault monitoring,
※ The dual track design is small footprint,
※ Solid and stable design,
※ SMEMA port is compatible.

Online PCB Magazine Unloaded For Assembly,CW-UL460 Technical Parameter:

Function	This equipment is used to collect PCBs into magazine at the end of SMT production line
PCB loading time	Approx 6seconds
Magazine change-over time	Approx 30 seconds
Power supply	100-230V AC (customized), single phase, MAX 300V/A
Air pressure	4-6 bar, MAX 10L/minute
Transport height	900±20mm (or customized)
Transport direction	Left to right / right to left(optional)
PCB thickness	Min 0.6mm
Magazine number	transport up: 1pcs, transport down: 1pcs,(or customized)
Step pitches select	1-4(10mm step pitches)
