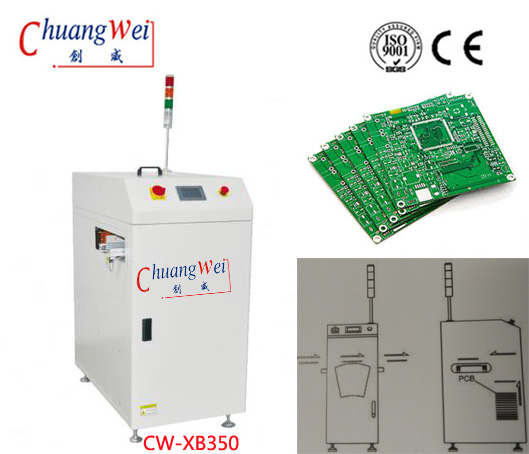

Optional Mode PLC System for PCB PWB SMT Loader,CW-XB350

Product description: Optional Mode PLC System for PCB PWB SMT Loader,CW-XB350
INQUIRY

Optional Mode PLC System for PCB PWB SMT Loader,CW-XB350 Specification:

Model No	CW-XB350
PCB size (L×W)～(L×W)	(50x50)～(500x350)
Machine size (L×W×H)	750×1050×1200
weight	110kg

Optional Mode PLC System for PCB PWB SMT Loader,CW-XB350 Product Instruction:

※PLC control system, working is stably and reliably;
※Touch screen control panel, the operation is so easy;
※The pneumatic clamps of top and bottom three point provided for the magazine alignment;

※ Effective thrust design can ensure the PCB is unbroken;

※Machine always fault monitoring;

※Flexible suction cup design, the position of suction cup is adjustable, Easy to adjust the position of the suction PCB;

※Optional pass working mode;
※ SMEMA port is compatible.

Optional Mode PLC System for PCB PWB SMT Loader,CW-XB350Technical Parameter:

Function	This equipment is used for line source, sucking PCB function is optional for the blank PCB, the load PCB function is optional for the nonblank PCB. It make production more efficient and practical
Max PCB’s capacity	300pcs (0.6mm thickness PCB)
cycling time	Approx 8 seconds
Power supply	100-230V AC (customized), single phase
Power load	MAX 180 VA
Air pressure	4-6 bar
Air volume	MAX 30L/minute
Transport height	900±20mm (or customized)
Transport direction	Left to right/right to left(optional)
